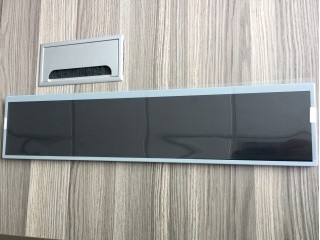

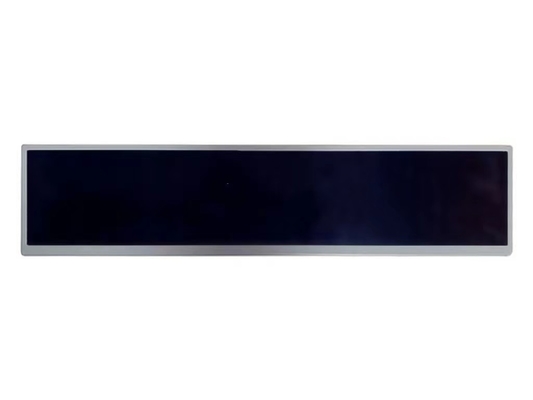

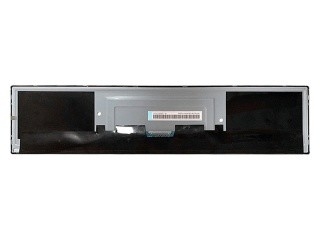

DV190FBM-NB0 BOE 19.1"  (1/3 cut of 21.5") 1920(RGB)×360  300 cd/m² INDUSTRIAL LCD DISPLAY

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.64(W)×89.37(H) mm, outline size of 491.5(W)×109.4(H)×12.8(D) mm, viewing area size of 479.5(W)×109.4(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 780g (Typ.). As a ADS, Normally Black, Transmissive LCM product, DV190FBM-NB0 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. DV190FBM-NB0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
