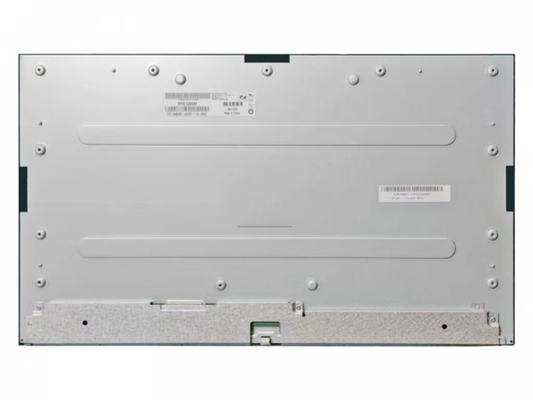

Product Details:
|
Brand: | AUO | Diagonal Size: | 21.5" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 102PPI | Luminance: | 250 (Typ.)(cd/m²) |
Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Basic Detail : | |
---|---|
Maximum Ratings : |
Pixel Features : | |
---|---|
Physical Size : | |
Outline Features : | |
Fixation : | |
Other Detail : |
Basic Detail : | |
---|---|
Color Performance : | |
1931 Color Gamut : |
Signal Electrical : | |
---|---|
Interface Features : | |
Interface Detail : |
Lamp Features : | |
---|---|
Lamp Electrical : | |
Interface Features : | |
Interface Detail : | |
Backlight Driver : |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.064(W)×267.786(H) mm, outline size of 484.46(W)×284.49(H)×13.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.76Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, M215HAN01.5 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 16S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. M215HAN01.5 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
