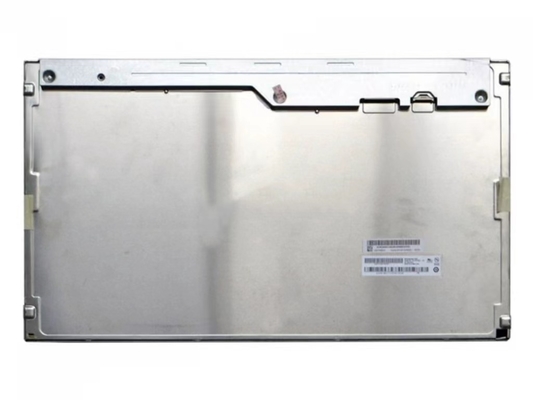

Product Details:
|
| Brand: | AUO | Diagonal Size: | 24.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 91PPI | Luminance: | 350 (Typ.)(cd/m²) |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Basic Info : | Panel Brand | Panel Model | M240HW01 V8 | |
|---|---|---|---|---|
| Diagonal Size | 24.0" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | M240HW01.8 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.09225×0.27675 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.27675×0.27675 mm (H×V) [91PPI] | |
| Mechanical Size : | Display Area | 531.36×298.89 mm (H×V) | Bezel Area | 535.4×303.0 mm (H×V) |
| Outline Dim. | 556×323.2 mm (H×V) | Outline Depth | 9.3/14.9 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 2.20Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 3.5/1.5 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.304; Wy:0.349 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6773K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 70% | sRGB | 88% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 71% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 14S4P | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 44.8±2.8V | Current Input | 110/120mA (Typ./Max.) | ||
| Consumption | 19.71/22.85W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3707K-Q06N-01R | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Signal Systerm : | LVDS (4 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 1.45/1.74A (Typ.Max.) | ||
| Consumption | 7.25/8.7W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-RE51S-HF | 0.5 mm | 51 pins | 1 pcs | ||
| P-TWO | 185132-15021 | 1.25 mm | 15 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 531.36(W)×298.89(H) mm, outline size of 556(W)×323.2(H)×14.9(D) mm, viewing area size of 535.4(W)×303.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.20Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, M240HW01 V8 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 3.5/1.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 14S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. M240HW01 V8 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 66 pins Connector with power supply voltage of 5.0V (Typ.).
