Product Details:
|
| Brand: | BOE | Resolution: | 1920(RGB)×1080, FHD 95PPI |
|---|---|---|---|
| Brightness: | 250 Cd/m² | Diagonal Size: | 23.0" |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 8 | 1 | 613×233×445 | N/A | 0.0636 | |
| Pallet | 96 | 12 | N/A | N/A | N/A |

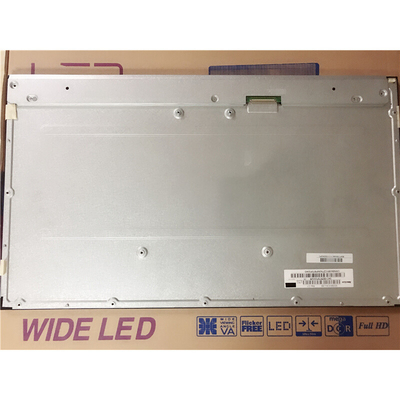

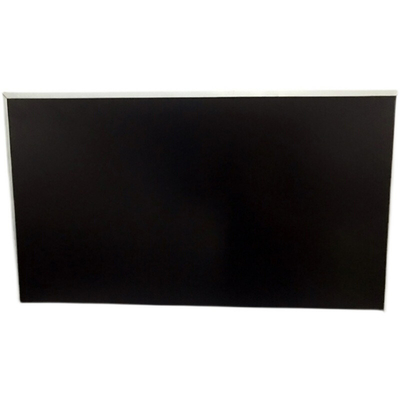

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 509.184(W)×286.416(H) mm, outline size of 533.2(W)×312(H)×11(D) mm, viewing area size of 513.0(W)×291.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.39Kgs (Typ.). As a FFS, Normally Black, Transmissive LCM product, HR230WU1-400 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. HR230WU1-400 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
