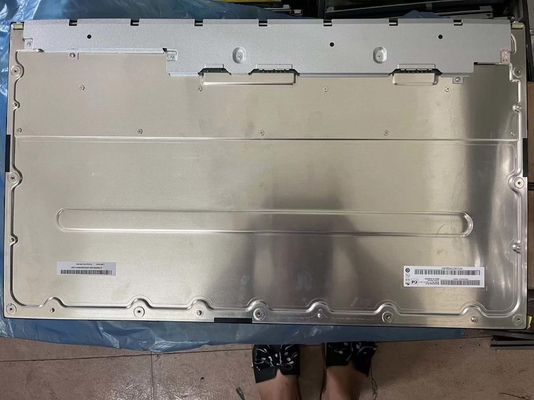

Product Details:
|
| Brand: | AUO | Diagonal Size: | 27.0" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 163PPI | Luminance: | 300 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

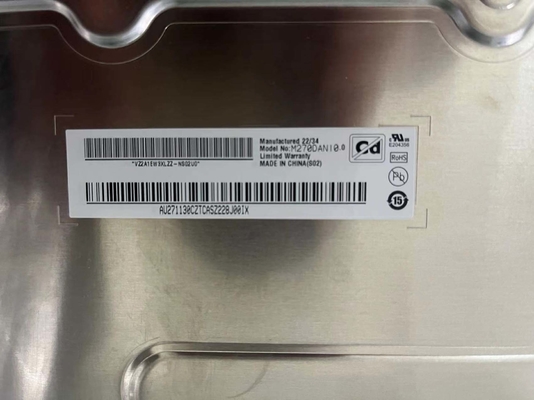

| Basic Detail : | Manufacturer | Model Name | M270QAN01.0 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 27.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.05175×0.15525 mm | Pixel Pitch(W×H) | 0.15525×0.15525 mm [163PPI] | |
| Physical Size : | Active Viewing | 596.16(W)×335.34(H) mm | Overall Dim. | 613.6(W)×356.85(H) mm |
| Bezel Opening | 601.6(W)×340.15(H) mm | Overall Depth | 9.15/15.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Mass | 2.82Kgs | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 0.9/1.1A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 10.8/13.2W (Typ./Max.) | Signal Interface | eDP (8 Lanes), HBR1 (2.7G/lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RE41S-HF | 1 pcs | 0.5 mm | 41 pins | ||
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 22S4P | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 120/130mA (Typ./Max.) | Input Voltage | 70.4/79.2V (Typ./Max.) | ||
| Consumption | 33.8/38W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3707K-S06N-07R | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.16(W)×335.34(H) mm, outline size of 613.6(W)×356.85(H)×15(D) mm, viewing area size of 601.6(W)×340.15(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.82Kgs. As a AHVA, Normally Black, Transmissive LCM product, M270QAN01.0 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 22S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. M270QAN01.0 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 41 pins Connector with power supply voltage of 12.0V (Typ.)
