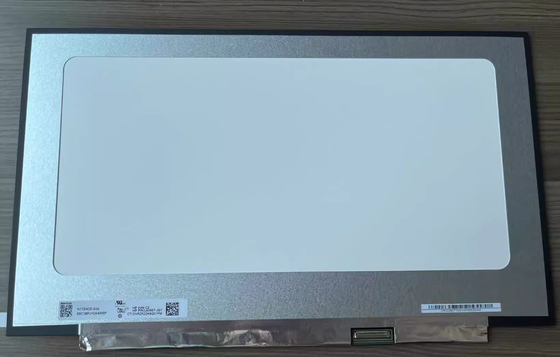

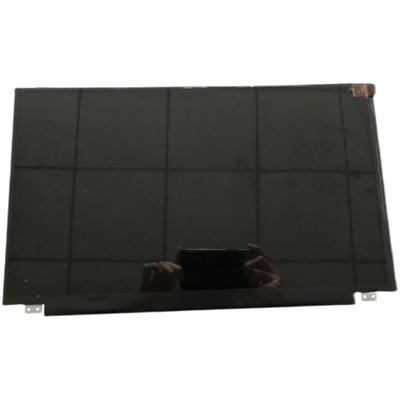

Product Details:
|
| Brand: | BOE | Diagonal Size: | 17.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 127PPI | Brightness: | 250 Cd/m² |
| Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |

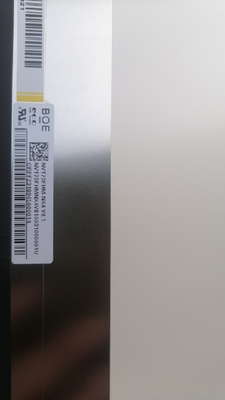

| Basic Info : | Panel Brand | Panel Model | NV173FHM-NX4 | |
|---|---|---|---|---|
| Diagonal Size | 17.3" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | BOE09A4 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.0663×0.1989 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1989×0.1989 mm (H×V) [127PPI] | |
| Mechanical Size : | Display Area | 381.888×214.812 mm (H×V) | Bezel Area | - |
| Outline Dim. | 389.89×238.12 mm (H×V) | Outline Depth | 3.3±0.2 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Flat (PCBA Flat, T3.4~4.0mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 480g (Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | ADS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 16 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 45% | sRGB | 62% coverage |
| Adobe RGB | 47% coverage | DCI-P3 | 47% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 5 strings | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 10S5P | Position | Edge light type (Bottom side) | |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.0/12.0/20.0V (Min./Typ./Max.) | Current Input | - | ||
| Consumption | 4.0W (Max.) | |||||
| Signal Systerm : | eDP (4 Lanes), eDP1.4, HBR1 (2.7G/lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 758mA (Max.) | ||
| Consumption | 2.5W (Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSAK24025P40G | 0.5 mm | 40 pins | 1 pcs | EDP40P4L-020A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 381.888(W)×214.812(H) mm, outline size of 389.89(W)×238.12(H)×3.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 480g (Max.), shape stype of Flat (PCBA Flat, T3.4~4.0mm). As a ADS, Normally Black, Transmissive LCM product, NV173FHM-NX4 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV173FHM-NX4 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
