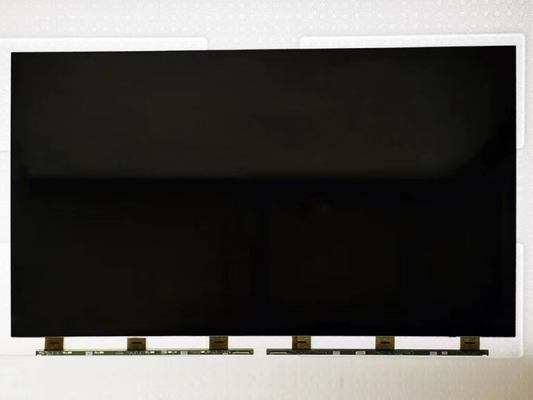

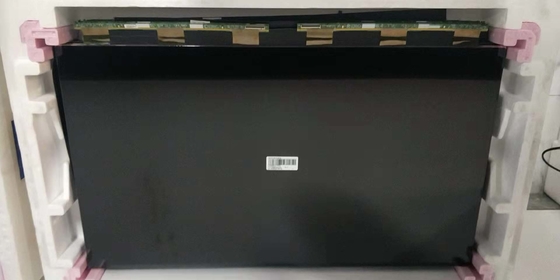

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 32.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 69PPI | Luminance: | 0 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Min.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LG Display LD320DUY-SPA1 Application Details
Basic Info :Panel BrandPanel ModelLD320DUY-SPA1Diagonal Size32.0"ApplicationPanel Typea-Si TFT-LCD , CELLModel AliasLD320DUY (SP)(A1)
Reliability :Operating Temp.0 ~ 50 °CStorage Temp.-20 ~ 60 °C
LG Display LD320DUY-SPA1 Mechanical Details
Pixel Features :Pixel Format1920(RGB)×1080, FHDDot Pitch0.12125×0.36375 mm (H×V)ConfigurationRGB Vertical StripePixel Pitch0.36375×0.36375 mm (H×V) [69PPI]
Mechanical Size :Display Area698.4×392.85 mm (H×V)Outline Dim.-Outline Dim.714×411 mm (H×V)Outline Depth1.20 (Typ.) mm
Outline Features :Form FactorFlat RectangleOrientationLandscape typeAspect Ratio16:9 (H:V)Plate Thickness-
Other Features :Weight900/930g (Typ./Max.)SurfaceAntiglare (Haze 1%), Hard coating (3H)
LG Display LD320DUY-SPA1 Optical Details
Basic Information :Brightness0 cd/m²Contrast Ratio1100:1 (Typ.) (Transmissive) Viewing Angle89/89/89/89 (Min.)(CR≥10)Optical ModeIPS, Normally Black, TransmissiveViewing DirectionSymmetryResponse Time10 (Typ.)(G to G)(B/W) ms
Color Performance :Chromaticity-Color Numbers16.7M (8-bit)
1931 Color Gamut :NTSC Ratio68%sRGB96% coverageAdobe RGB72% coverageDCI-P371% coverageRec.202051% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :Outdoor VisibilityNoTransmittance5.75% (Typ.)(with Polarizer)
LG Display LD320DUY-SPA1 Interface Details
Signal Systerm :LVDS (2 ch, 8-bit)Logic Voltage-
Signal Electrical :Voltage Input12.0V (Typ.)Current Input525/683mA (Typ./Max.)Consumption6.3/8.2W (Typ./Max.)
Interface Features :TypeConnectorPosition-
Connector Detail :BrandModelPin PitchPinsAmountConfiguration JAEFI-RXE51S-HF0.5 mm51 pins1 pcs
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 698.4(W)×392.85(H) mm, outline size of 714(W)×411(H)×1.2(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 900/930g (Typ./Max.). As a IPS, Normally Black, Transmissive CELL product, LD320DUY-SPA1 can provides 1100:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10 (Typ.)(G to G)(B/W) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 66% (NTSC). This product have no backlight. LD320DUY-SPA1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
