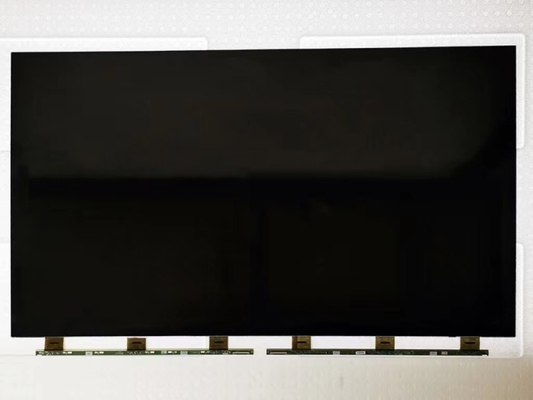

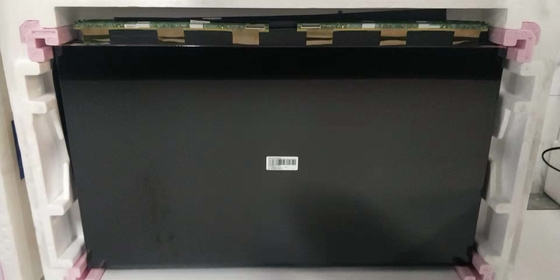

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 32.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 69PPI | Luminance: | 0 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Min.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

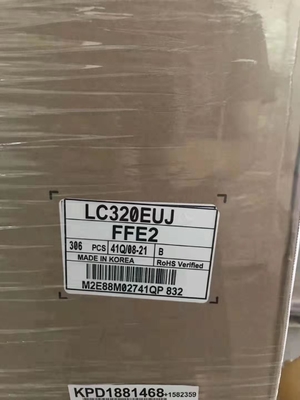

| Basic Detail : | Manufacturer | Model Name | LC320EUJ-FFE2 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , CELL | Another Name | LC320EUJ (FF)(E2) | |
| Panel Size | 32.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.12125×0.36375 mm | Pixel Pitch(W×H) | 0.36375×0.36375 mm [69PPI] | |
| Physical Size : | Active Viewing | 698.4(W)×392.85(H) mm | Overall Dim. | 714(W)×411(H) mm |
| Bezel Opening | - | Overall Depth | 1.40 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Plate Thickness | 0.50+0.50 mm | |
| Other Detail : | Mass | 840/880g (Typ./Max.) | Surface | Antiglare (Haze 1%), Hard coating (3H) |
| Basic Information : | Luminance | 0 cd/m² | Contrast Ratio | 1400 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 6 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | 16.7M (8-bit) |
| 1931 Color Gamut : | NTSC Ratio | 68% | sRGB | 95% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 71% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | No | Transmissivity | 5.75% (Typ.)(with Polarizer) |
| Signal Electrical : | Input Current | 500/650mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 6.0/8.26W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 698.4(W)×392.85(H) mm, outline size of 714(W)×411(H)×1.4(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 840/880g (Typ./Max.), utilizing 0.50+0.50 mm mm plate. As a IPS, Normally Black, Transmissive CELL product, LC320EUJ-FFE2 can provides 1400:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 68% (NTSC). This product have no backlight. LC320EUJ-FFE2 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.)
