Product Details:
|
Brand: | BOE | Diagonal Size: | 16.0" |
---|---|---|---|
Resolution: | 3840(RGB)×2400 282PPI | Brightness: | 500 Cd/m² (Typ.) |
Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

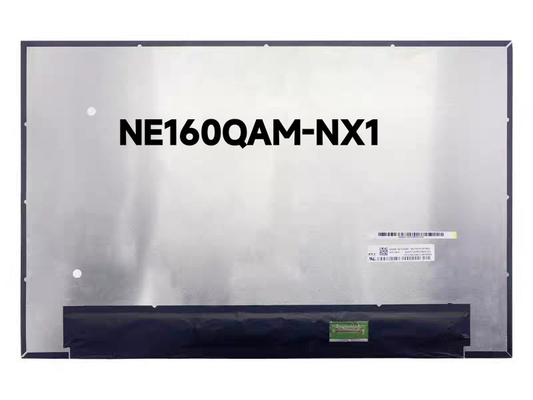

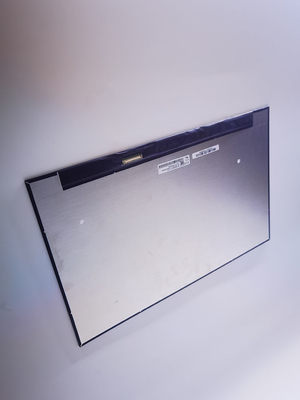

Basic Info : | Panel Brand | Panel Model | NE160QAM-NX1 | |
---|---|---|---|---|
Diagonal Size | 16.0" | Application |
|
|
Panel Type | a-Si TFT-LCD , LCM | Model Alias | BOE0A19 | |
Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
Pixel Features : | Pixel Format | 3840(RGB)×2400 | Dot Pitch | 0.02992×0.08976 mm (H×V) |
---|---|---|---|---|
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.08976×0.08976 mm (H×V) [282PPI] | |
Mechanical Size : | Display Area | 344.678×215.424 mm (H×V) | Bezel Area | - |
Outline Dim. | 349.68×224.42 mm (H×V) | Outline Depth | 2.45/4.6 (Typ./Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:10 (H:V) | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
Holes & Brackets : | Without | |||
Other Features : | Weight | 330g (Max.) | Surface | Antiglare, Hard coating (3H) |
Basic Information : | Brightness | 500 cd/m² (Typ.), HDR400 | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
---|---|---|---|---|
Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Optical Mode | ADS, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 9 (Typ.)(Tr+Td), 3 (Typ.)(G to G) (ms) | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (8-bit + Hi-FRC) |
Color Temperature | 6485K | White Uniformity | 1.25/1.52 (Max.)(5/13 points) | |
1931 Color Gamut : | NTSC Ratio | 96% | sRGB | 100% coverage |
Adobe RGB | 88% coverage | DCI-P3 | 100% coverage | |
Rec.2020 | 72% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Back-light Features: | Lamp Shape | 8 strings | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
---|---|---|---|---|---|---|
Replacement | - | Amount | 11S8P | Position | Edge light type | |
Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
Driver Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | 596mA (Max.) | ||
Consumption | 7.15W (Max.) |
Signal Systerm : | eDP (4 Lanes), eDP1.4b, HBR3 (8.1G/lane) | Logic Voltage | - | |||
---|---|---|---|---|---|---|
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 630/727mA (Typ./Max.) | ||
Consumption | 2.08/2.40W (Typ./Max.) | |||||
Interface Features : | Type | Connector | Position | |||
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
I-PEX | 20455-040E-02 | 0.5 mm | 40 pins | 1 pcs |
whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 282 PPI. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.68(W)×224.42(H)×4.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 330g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NE160QAM-NX1 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td), 3 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product adopted 11S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE160QAM-NX1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
