Product Details:
|
| Brand: | BOE | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1440, Quad-HD 188PPI | Luminance: | 300 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Detail : | |
|---|---|
| Maximum Ratings : |
| Pixel Features : | |
|---|---|
| Physical Size : | |
| Outline Features : | |
| Fixation : | |
| Other Detail : |
| Basic Detail : | |
|---|---|
| Color Performance : | |
| 1931 Color Gamut : |
| Signal Electrical : | |
|---|---|
| Interface Features : | |
| Interface Detail : |
| Lamp Features : | |
|---|---|
| Interface Features : | |
| Backlight Driver : | |
| Driver Electrical : |

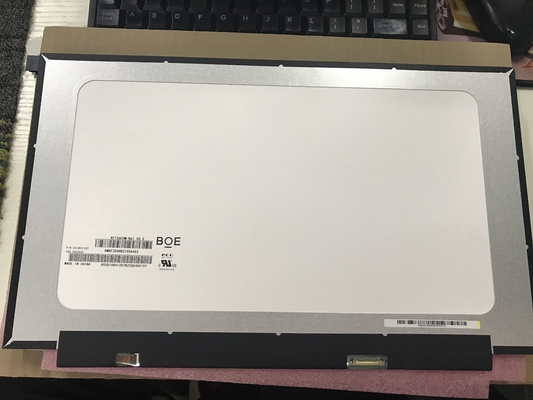

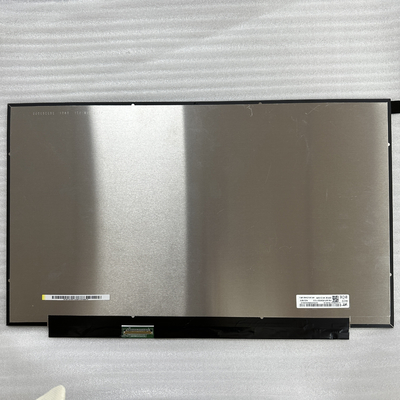

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.22(W)×193.62(H) mm, outline size of 350.66(W)×214.72(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 290g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE156QHM-NY4 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 11S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE156QHM-NY4 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
