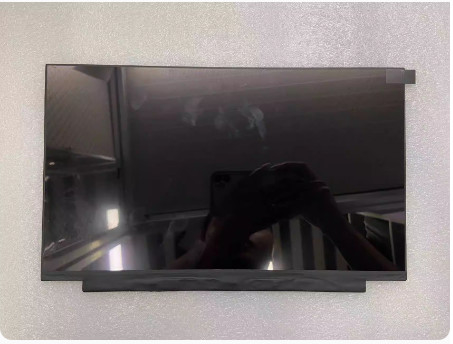

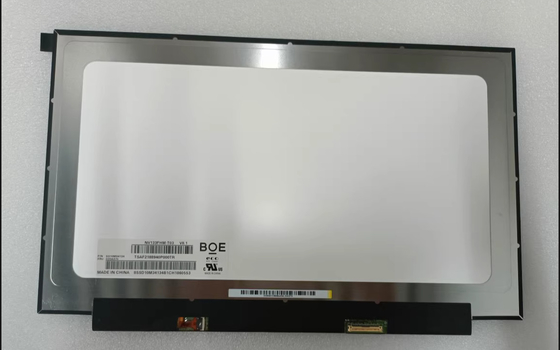

Product Details:
|
Brand: | BOE | Diagonal Size: | 13.3" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 166PPI | Brightness: | 250 Cd/m² |
Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Basic Detail : | |
---|---|
Maximum Ratings : |
Pixel Features : | |
---|---|
Physical Size : | |
Outline Features : | |
Fixation : | |
Other Detail : |
Basic Detail : | |
---|---|
Color Performance : | |
1931 Color Gamut : |
Signal Electrical : | |
---|---|
Interface Features : | |
Interface Detail : |
Lamp Features : | |
---|---|
Interface Features : | |
Backlight Driver : | |
Driver Electrical : |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 300.26(W)×187.27(H)×3(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 260g (Typ.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV133FHM-N33 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV133FHM-N33 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
