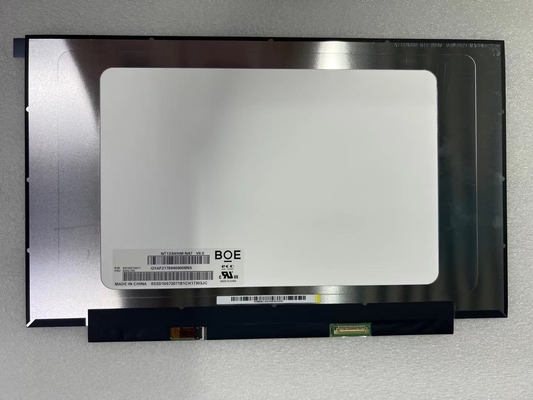

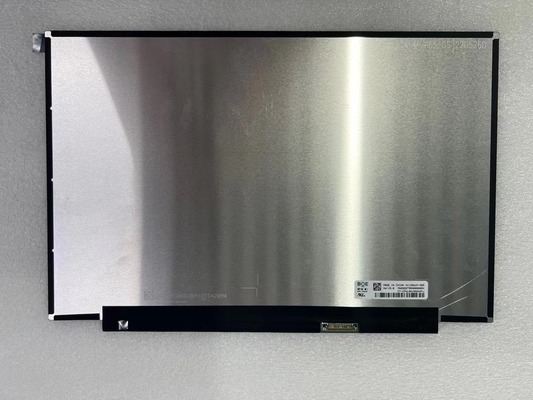

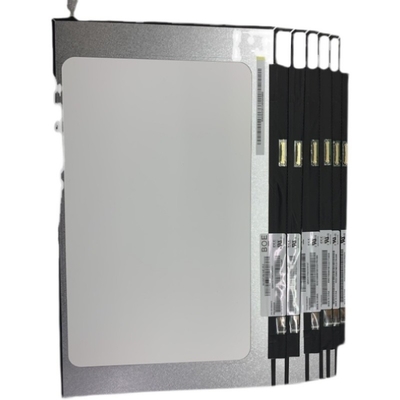

Product Details:
|
| Brand: | BOE | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 118PPI | Luminance: | 250 Cd/m² |
| Viewing Angle: | 45/45/20/40 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Information : | Brand | Model 6 Compatible | Type | Model Alias |
|---|---|---|---|---|
| NT133WHM-N47 | a-Si TFT-LCD , LCM | BOE0800 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 13.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.0717×0.2151 mm | 0.2151×0.2151 mm [118PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 293.83×165.2 mm | - | 300.26×187.95 mm | 3.0 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 255g (Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/20/40 (Typ.)(CR≥10) | 6 o'clock | 12 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7079K | 262K (6-bit) | X:0.303; Y:0.326 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 43% | 60% | 45% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 44% | 32% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.60 (Max.)(5/13 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 182/300mA (Typ./Max.) | 3.3V (Typ.) | 0.6/0.9W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-030E-66 | 1 pcs | 0.5 mm | 30 pins | EDP-30P1L-030A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 8S4P | 15K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| - | 5.0/12.0/21.0V (Min./Typ./Max.) | 2.6W (Max.) | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.83(W)×165.2(H) mm, outline size of 300.26(W)×187.95(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 255g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a TN, Normally White, Transmissive LCM product, NT133WHM-N47 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NT133WHM-N47 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
