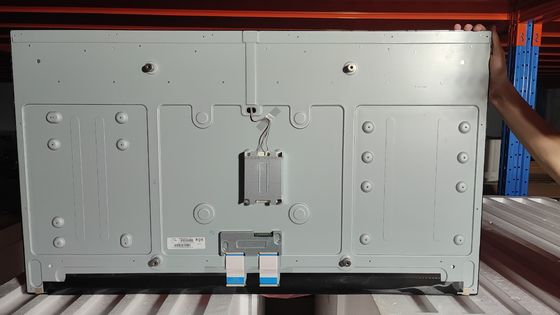

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 43" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 51PPI | Luminance: | 0 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Min.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|

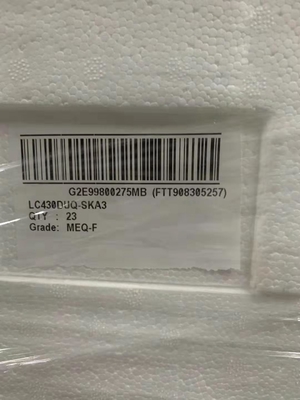

| LC430DUQ-SKA3 | a-Si TFT-LCD , CELL | LC430DUQ (SK)(A3) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 43" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.1634×0.4902 mm | 0.4902×0.4902 mm [51PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 941.184×529.416 mm | - | 953×543 mm | 1.20 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Plate Thickness |
| Flat Rectangle | 16:9 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.50Kgs (Typ.) | - | Antiglare (Haze 1%), Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 0 cd/m² | IPS, Normally Black, Transmissive | 1200:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Min.)(CR≥10) | 6 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 16.7M (8-bit) | - | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 68% | 84% | 70% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 69% | 51% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Transmissivity : | 6.35% (Typ.)(with Polarizer) | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 400/520mA (Typ./Max.) | 4.8/6.3W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-RXE51S-HF | 1 pcs | 51 pins | 0.5 mm | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 941.184(W)×529.416(H) mm, outline size of 953(W)×543(H)×1.2(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 1.50Kgs (Typ.). As a IPS, Normally Black, Transmissive CELL product, LC430DUQ-SKA3 can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product have no backlight. LC430DUQ-SKA3 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
