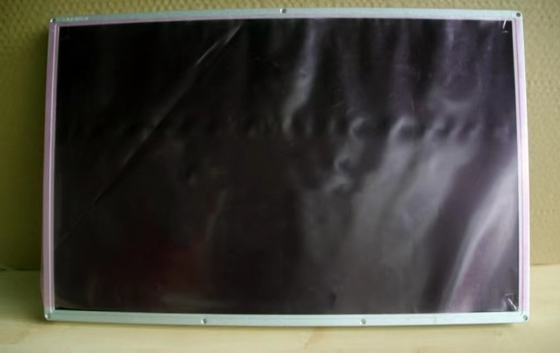

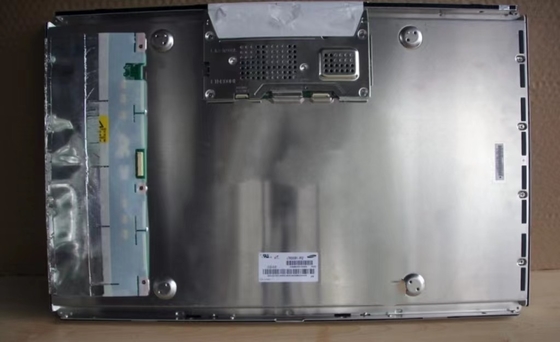

Product Details:
|
| Brand: | Samsung | Diagonal Size: | 30.0" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1600, WQXGA 101PPI | Luminance: | 300 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LTM300M1-P02 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -25 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 12 (Typ.)(Tr+Td), 6 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | S-PVA, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 99% | 99% | 97% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 89% | 74% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Panel Size : | 30.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 2560(RGB)×1600 [WQXGA] | RGB Vertical Stripe | 0.2505×0.2505 [101PPI] | 0.0835×0.2505 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 641.28(H) × 400.8(V) | 646.3(H) × 405.8(V) | 677.3(H) × 436.8(V) | 29.8/42.3 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | Normal bezel | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 4.90Kgs (Max.) | - | Antiglare (Haze 44%), Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Direct light type | 16 pcs | Straight | 30K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With Inverter | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | S14B-PHA-SM-TB | 2.0 mm | 14 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 24.0V (Typ.) | 3.5A (Typ.) | |||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 18.0V (Typ.) | 0.75A (Typ.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Dual Link TMDS | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-XB30SSL-HF15 | 1.0 mm | 30 pins | 1 pcs | ||
| molex | 53261-1510 | 1.25 mm | 15 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 641.28(W)×400.8(H) mm, outline size of 677.3(W)×436.8(H)×42.3(D) mm, viewing area size of 646.3(W)×405.8(H) mm, with surface treament of Antiglare (Haze 44%), Hard coating (3H), net weight of 4.90Kgs (Max.). As a S-PVA, Normally Black, Transmissive LCM product, LTM300M1-P02 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12 (Typ.)(Tr+Td), 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 97% (Adobe). This product adopted 16 pcs CCFL as it's backlight systerm which was placed as Direct light type and have a working life time of 30K hours, With Inverter. LTM300M1-P02 utilizes Dual Link TMDS as it's signal inputting systerm, which connected by 45 pins Connector with power supply voltage of 18.0V (Typ.)
