Product Details:
|
| Brand: | KOE | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 313PPI | Luminance: | 700 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²) |

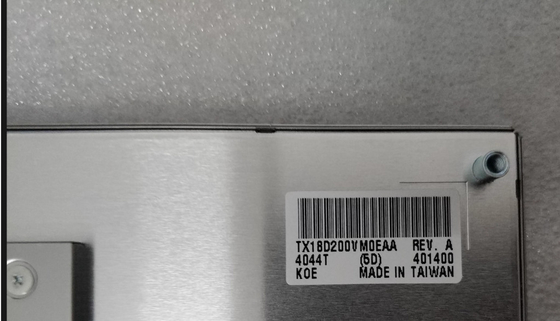

| Basic Info : | Panel Brand | Panel Model | TX18D200VM0EAA | |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 2.0G (19.6 m/s²) |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.027×0.081 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.081×0.081 mm (H×V) [313PPI] | |
| Mechanical Size : | Display Area | 155.52×87.48 mm (H×V) | Bezel Area | 158.5×90.5 mm (H×V) |
| Outline Dim. | 169×104 mm (H×V) | Outline Depth | 5.6/10.3 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||

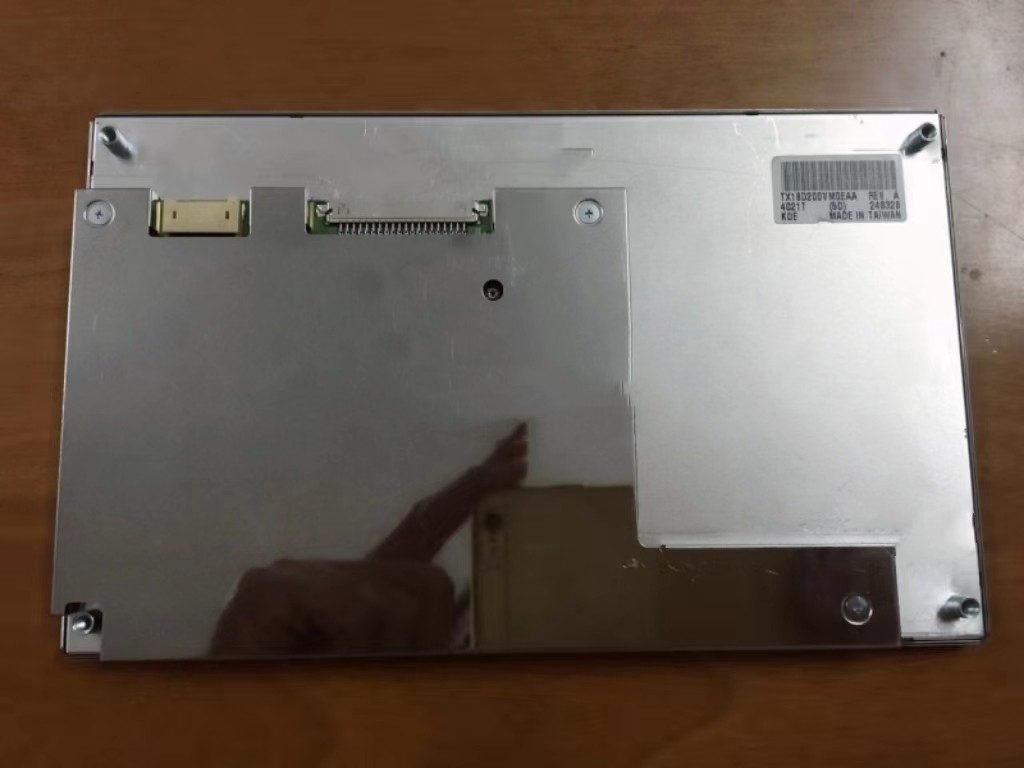

| Holes & Brackets : | Rear mounting holes (4-M3) on pole | |||
| Other Features : | Weight | 180g (Typ.) | Surface | - |
| Basic Information : | Brightness | 700 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | IPS-Pro, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 23 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.320; Wy:0.340 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6066K | White Uniformity | 1.43 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 70K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3S10P | Position | Edge light type | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM02(8.0)B-BHS-1-TB | 8.0 mm | 2 pins | 1 pcs | BDE-2PINS-VG | |
| Driver Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 385mA (Typ.) | ||
| Consumption | 4.62W (Typ.) | |||||
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 160/210mA (Typ./Max.) | ||
| Consumption | 0.53W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-SEB20P-HF13E-E1500 | 1.25 mm | 20 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 313 PPI. As for mechanical detail, it features active area of 155.52(W)×87.48(H) mm, outline size of 169(W)×104(H)×10.3(D) mm, viewing area size of 158.5(W)×90.5(H) mm, net weight of 180g (Typ.). As a IPS-Pro, Normally Black, Transmissive LCM product, TX18D200VM0EAA can provides 700 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 23 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC). This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX18D200VM0EAA utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
