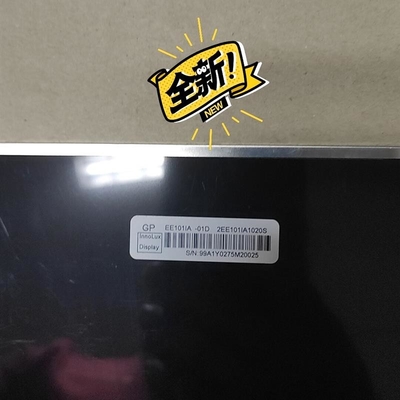

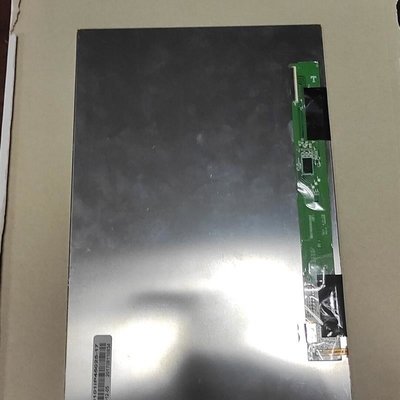

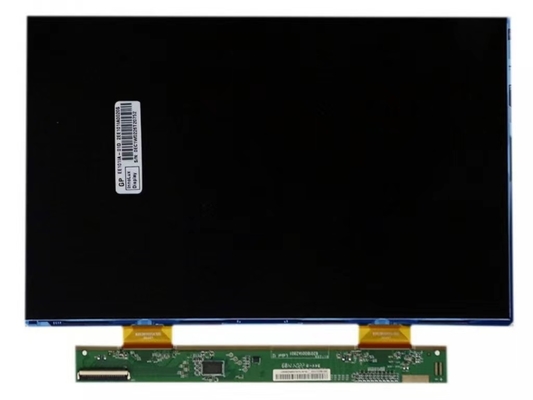

Product Details:
|
| Brand: | Innolux | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 149PPI | Brightness: | 0 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| EE101IA-01D | a-Si TFT-LCD , CELL | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Screen Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×800, WXGA | RGB Vertical Stripe | 0.0565×0.1695 mm | 0.1695×0.1695 mm [149PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 216.96×135.6 mm | - | 223.95×144.24 mm | 1.07±0.1 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Plate Thickness |
| Flat Rectangle | 16:10 | Landscape type | 0.40+0.40 mm | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 80.0g (Typ.) | - | Hard coating | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 0 cd/m² | IPS, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6737K | 16.7M (8-bit) | X:0.310; Y:0.320 | |
| Transmissivity : | 5.85% (Typ.) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| No B/L | - | - | - | - | - | |
| Interface Features : | No B/L Driver State | Physical Type | Interface Position | |||
| No | Included in signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 2.5/8.2/15/-13V (Typ.)(VDD/AVDD/VGH/VGL) | 31/22/1.4/1.4mA (Typ.)(IDD/AIDD/IGH/IGL) | 0.31W (Typ.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 196479-40041-3 | 1 pcs | 40 pins | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 223.95(W)×144.24(H)×1.07(D) mm, with surface treament of Hard coating, net weight of 80.0g (Typ.), utilizing 0.40+0.40 mm mm plate. As a IPS, Normally Black, Transmissive CELL product, EE101IA-01D can provides 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product have no backlight, external backlight driver is additionally needed. EE101IA-01D utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 2.5/8.2/15/-13V
