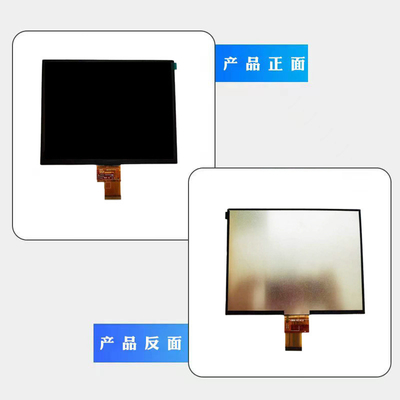

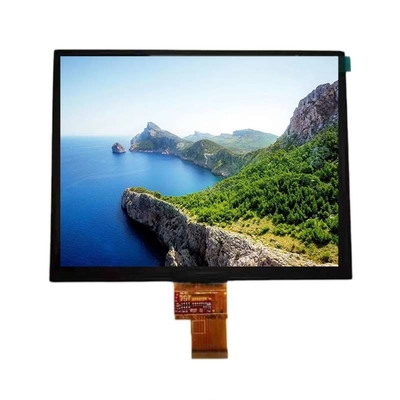

Product Details:
|
| Brand: | Chimei Innolux | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 160PPI | Luminance: | 0 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Environment: | Operating Temperature: -20 ~ 50 °C ; Storage Temperature: -30 ~ 60 °C |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| HE080IA-01D | a-Si TFT-LCD , CELL | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 50 °C | -30 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 0 | 85/85/85/85 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 8028K | 262K/16.7M (6-bit / 8-bit) | X:0.288; Y:0.326 | |
| Transmissivity : | 4.3% (Typ.)(with Polarizer) | ||
| Panel Size : | 8.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×768 [XGA] | RGB Vertical Stripe | 0.15825×0.15825 [160PPI] | 0.05275×0.15825 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 162.048(H) × 121.536(V) | - | 171.12(H) × 132.62(V) | 1.07 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Plate Thickness |
| Flat Rectangle | Landscape type | 4:3 (H:V) | 0.40+0.40 mm | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 52.0g | - | Hard coating | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/10.0/18.9/-7.8V (Typ.)(VCC/AVDD/VGH/VGL) | 35/25/0.65/0.65mA (Typ.)(ICC/AIDD/IGH/IGL) | 0.383W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6/8-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 40 pins | 1 pcs | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 162.048(W)×121.536(H) mm, outline size of 171.12(W)×132.62(H)×1.07(D) mm, with surface treament of Hard coating, net weight of 52.0g, utilizing 0.40+0.40 mm mm plate. As a IPS, Normally Black, Transmissive CELL product, HE080IA-01D can provides 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product have no backlight, external backlight driver is additionally needed. HE080IA-01D utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/10.0/18.9/-7.8V (Typ.)
