Product Details:
|
| Brand: | Sharp | Diagonal Size: | 17.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA 133PPI | Luminance: | 500 Cd/m² |
| Active Area: | 365.76(W)×228.6(H) Mm | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

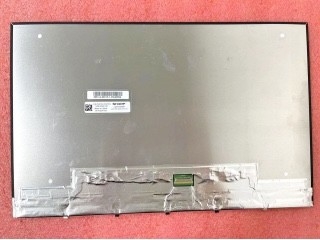

| Basic Information : | Brand | Model | LQ170N1JW42 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 17.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1920(RGB)×1200, WUXGA | Dot Pitch(mm) | 0.0635×0.1905 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1905×0.1905 (H×V) [133PPI] | |
| Mechanical Size : | Active Area(mm) | 365.76(H) × 228.6(V) | Bezel Area(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | - | |
| Other Spec : | Weight | - | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | - |
|---|---|---|---|---|
| Viewing Angle | - | Display Mode | WVA, Normally Black, Transmissive | |
| Best View on | - | Response(ms) | - | |
| Color Performance : | White Coordinate | - | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Frame Rate : | 60Hz |
|---|
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 365.76(W)×228.6(H) mm, with surface treament of Antiglare. As a WVA, Normally Black, Transmissive LCM product, LQ170N1JW42 can provides 500 cd/m² display brightness . Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LQ170N1JW42 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with Sharp or it's distributor.
