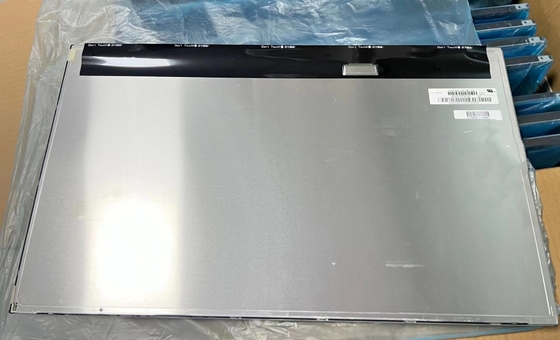

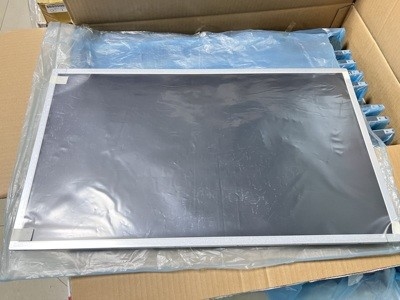

Product Details:
|
| Brand: | AUO | Diagonal Size: | 27.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 81PPI | Luminance: | 300 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Detail : | Manufacturer | Model Name | P270HVN02.0 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 27.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 3000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 7/5 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | VA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.10375×0.31125 mm | Pixel Pitch(W×H) | 0.31125×0.31125 mm [81PPI] | |
| Physical Size : | Active Viewing | 597.6(W)×336.15(H) mm | Overall Dim. | 613.6(W)×356.85(H) mm |
| Bezel Opening | 601.6(W)×340.15(H) mm | Overall Depth | 7.18/10.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Mass | 2.18Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 0.93/1.22A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.65/5.58W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||

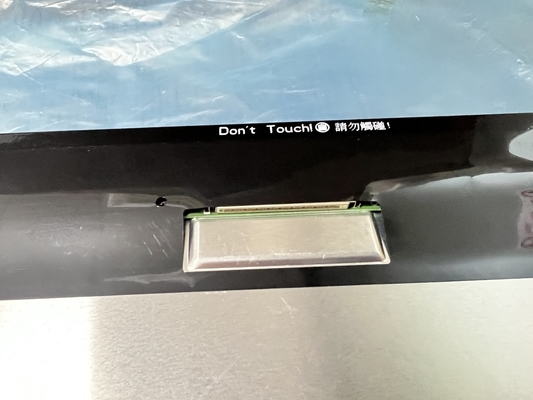

| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| P-TWO | AL230F-A0G1D-P | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 15S4P | Life | 40K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 80/84mA (Typ./Max.) | Input Voltage | 43.5/46.5/51V (Min./Typ./Max.) | ||
| Consumption | 14.88/16.32W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| CviLux | CI1406M1HRN-NH1 | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.6(W)×336.15(H) mm, outline size of 613.6(W)×356.85(H)×10.5(D) mm, viewing area size of 601.6(W)×340.15(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.18Kgs (Typ.). As a VA, Normally Black, Transmissive LCM product, P270HVN02.0 can provides 300 cd/m² display brightness 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 7/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 15S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, external backlight driver is additionally needed. P270HVN02.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
