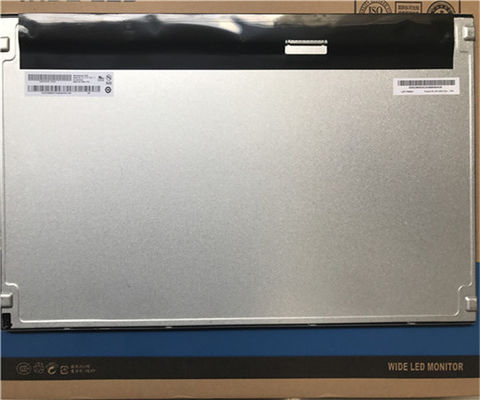

Product Details:
|
| Brand: | AUO | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1440(RGB)×900, WXGA+ 89PPI | Brightness: | 300 Cd/m² |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| M190PW01 V0 | a-Si TFT-LCD , LCM | M190PW01 V.0 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 3.6/1.4 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 74% | 95% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 76% | 55% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Panel Size : | 19.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1440(RGB)×900 [WXGA+] | RGB Vertical Stripe | 0.2835×0.2835 [89PPI] | 0.0945×0.2835 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 408.24(H) × 255.15(V) | 412.24(H) × 259.15(V) | 428(H) × 278(V) | 18.5±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | Normal bezel | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 2.12Kgs (Typ.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 4 pcs | Straight | 50K(Typ.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 200/771/848V (Min./Typ./Max.) | 3.0/6.5/8.0mA (Min./Typ./Max.) | 20.04/22.04W (Typ./Max.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 40/50/80KHz (Min./Typ./Max.) | 1250/1700V (Min.)(Ta=+25/0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| YEONHO | 35001HS-02L | 3.5 mm | 2 pins | 4 pcs | BLL-2PINS-HL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 0.80/1.20A (Typ./Max.) | 4.0/6.0W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (2 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-XB30SSL-HF15 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 408.24(W)×255.15(H) mm, outline size of 428(W)×278(H)×19(D) mm, viewing area size of 412.24(W)×259.15(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.12Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, M190PW01 V0 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 3.6/1.4 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 4 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. M190PW01 V0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
