NT156FHM-N43 BOE 15.6" 1920(RGB)×1080, 220 cd/m² INDUSTRIAL LCD DISPLAY

NT156FHM-N43 BOE 15.6" 1920(RGB)×1080, 220 cd/m² INDUSTRIAL LCD DISPLAY

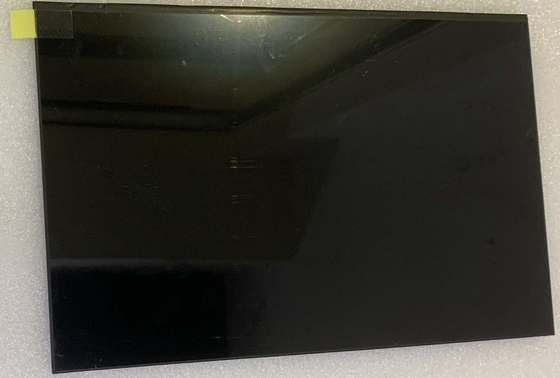

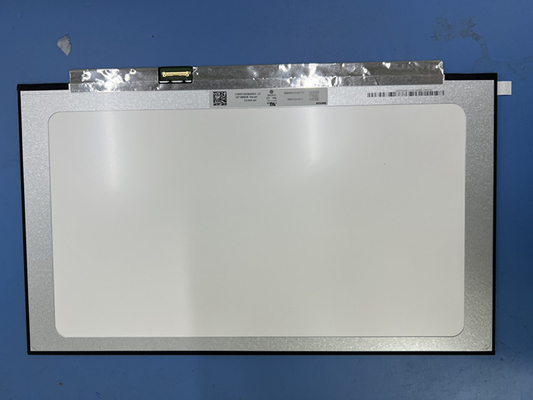

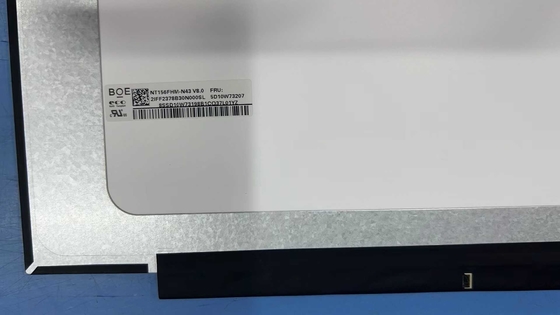

NT156FHM-N43 BOE 15.6" 1920(RGB)×1080, 220 cd/m² INDUSTRIAL LCD DISPLAY NT156FHM-N43 BOE 15.6" 1920(RGB)×1080, 220 cd/m² INDUSTRIAL LCD DISPLAY NT156FHM-N43 BOE 15.6" 1920(RGB)×1080, 220 cd/m² INDUSTRIAL LCD DISPLAY NT156FHM-N43 BOE 15.6" 1920(RGB)×1080, 220 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  NT156FHM-N43 BOE 15.6" 1920(RGB)×1080, 220 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: BOE
Certification: ISO9001
Model Number: NT156FHM-N43
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROWS

NT156FHM-N43 BOE 15.6" 1920(RGB)×1080, 220 cd/m² INDUSTRIAL LCD DISPLAY

Description
Brand: BOE Diagonal Size: 15.6"
Resolution: 1920(RGB)×1080, FHD 141PPI Brightness: 220 Cd/m²
Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C Viewing Angle: 45/45/20/40 (Typ.)(CR≥10)

BOE NT156FHM-N43 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
  NT156FHM-N43 a-Si TFT-LCD , LCM BOE08D5
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



BOE NT156FHM-N43 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
220 (Typ.) 45/45/20/40 (Typ.)(CR≥10) 12 (Typ.)(Tr+Td)
Best View on Display Mode Contrast Ratio
6 o'clock TN, Normally White, Transmissive 500 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 16.2M (6-bit + FRC) X:0.313; Y:0.329
1931 Color Gamut : NTSC Ratio sRGB Coverage Adobe RGB Coverage
45% 62% 47%
DCI-P3 Coverage Rec.2020 Coverage Remarks
47% 33% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25/1.67 (Max.)(5/13 points)



BOE NT156FHM-N43 Mechanical Features

Panel Size : 15.6"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1920(RGB)×1080 [FHD] RGB Vertical Stripe 0.17925×0.17925 [141PPI] 0.05975×0.17925
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
344.16(H) × 193.59(V) - 350.66(H) × 214.75(V) 3.0/3.2 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 16:9 (H:V) Slim (PCBA Flat, T≤3.2mm)
Mounting : Without
Other Detail : Weight Panel Cover Treatment
360g (Max.) - Antiglare, Hard coating (3H)



BOE NT156FHM-N43 Backlight Features

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type 9S4P 4 strings 15K(Min.) -
Interface Features : Position Backlight Driver Type
- With LED Driver Included in signal interface
Driver Electrical : Voltage Supply Current Supply Power Consumption
5.0/12.0/21.0V (Min./Typ./Max.) - 2.42W (Max.)



BOE NT156FHM-N43 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3V (Typ.) 212.1/345.5mA (Typ./Max.) 0.7/1.14W (Typ./Max.)
Interface Features : Position Signal Type
  eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) Connector

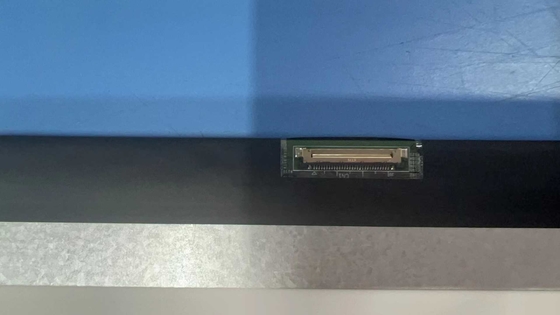

Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
STM MSAK24025P30 0.5 mm 30 pins 1 pcs EDP-30P2L-020A



whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×214.75(H)×3.2(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 360g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a TN, Normally White, Transmissive LCM product, NT156FHM-N43 can provides 220 cd/m² display brightness 500:1 transimissive contrast ratio, 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 45% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NT156FHM-N43 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)



NT156FHM-N43 BOE 15.6" 1920(RGB)×1080, 220 cd/m² INDUSTRIAL LCD DISPLAY 0
