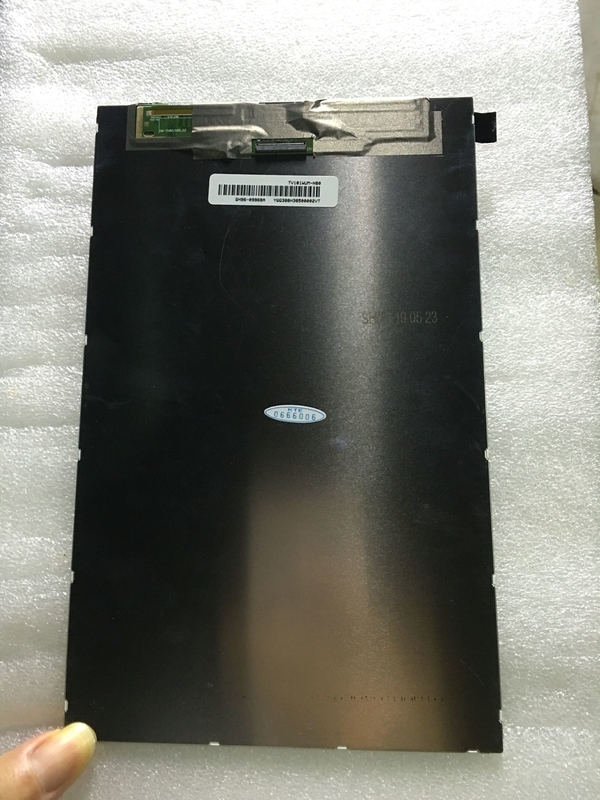

Product Details:
|
| Brand: | BOE | Diagonal Size: | BOE |
|---|---|---|---|
| Resolution: | 1200(RGB)×1920, WUXGA 225PPI | Brightness: | 450 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Environment: | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TV101WUM-NS0 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -10 ~ 60 °C | -30 ~ 70 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 450 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 35 (Max.)(Tr+Tf) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ADS, Normally Black, Transmissive | 900 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7525K | 16.7M (8-bit) | X:0.300; Y:0.310 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 100% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25 (Max.)(9 points) | ||
| Panel Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1200(RGB)×1920 [WUXGA] | RGB Vertical Stripe | 0.1128×0.1128 [225PPI] | 0.0376×0.1128 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 135.36(H) × 216.576(V) | - | 142.32(H) × 227.38(V) | 1.99/3.69 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 10:16 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 110g (Typ.) | - | Antiglare, Hard coating (3H), Antireflection | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 4 strings | 15K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 23.4/27/27.9V (Min./Typ./Max.) | 85.2mA (Typ.) | 1.99/2.3/2.38W (Min./Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 1.8/5.4/-5.4V (Typ.)(VDD/VSP/VSN) | 40/21/17mA (Typ.)(IDD/ISP/ISN) | 277.2/898.2mW (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | MIPI (4 data lanes) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | FH34SJ-34S-0.5SH | 0.5 mm | 34 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 135.36(W)×216.576(H) mm, outline size of 142.32(W)×227.38(H)×3.69(D) mm, with surface treament of Antiglare, Hard coating (3H), Antireflection, net weight of 110g (Typ.). As a ADS, Normally Black, Transmissive LCM product, TV101WUM-NS0 can provides 450 cd/m² display brightness 900:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. TV101WUM-NS0 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 34 pins Connector with power supply voltage of 1.8/5.4/-5.4V (Typ.)(VDD/VSP/VSN).
