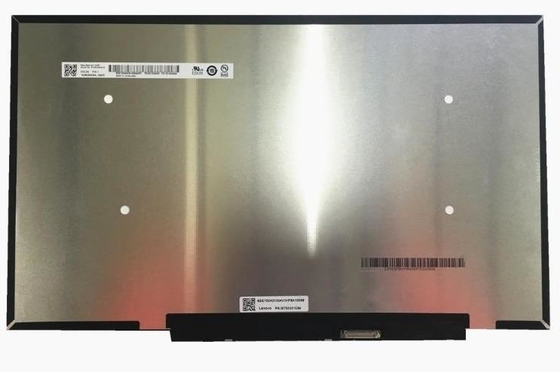

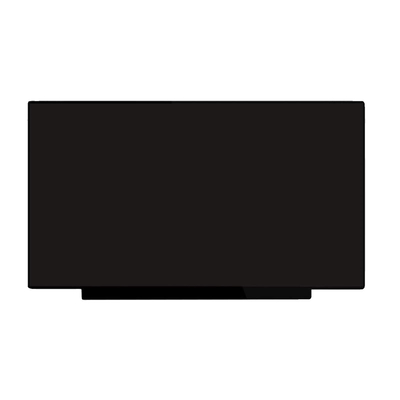

Product Details:
|
| Brand: | BOE | Diagonal Size: | 15.6" |
|---|---|---|---|
| Luminance: | 600 Cd/m² | Resolution: | 3840(RGB)×2160, UHD 283PPI |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Basic Detail : | Manufacturer | Model Name | NE156QUM-N6C | |
|---|---|---|---|---|
| Panel Type | Oxide TFT-LCD , LCM | Another Name | BOE0919 | |
| Panel Size | 15.6 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 600 cd/m² (Typ.), HDR400 | Contrast Ratio | 1500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.06B (8-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 101% | sRGB | 100% coverage |
| Adobe RGB | 100% coverage | DCI-P3 | 93% coverage | |
| Rec.2020 | 76% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.02988×0.08964 mm | Pixel Pitch(W×H) | 0.08964×0.08964 mm [283PPI] | |
| Physical Size : | Active Viewing | 344.218(W)×193.622(H) mm | Overall Dim. | 350.72(W)×216.14(H) mm |
| Bezel Opening | - | Overall Depth | 2.40/2.6 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 280g (Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 333.3mA (Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.1W (Max.) | Signal Interface | eDP (4 Lanes), eDP1.4a, HBR2 (5.4G/lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STM | MSAK24025P40G | 1 pcs | 0.5 mm | 40 pins | ||
| Lamp Features: | Lamp Shape | 4 strings × 2CN | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 600mA (Max.) | Input Voltage | 5.0/12.0/21.0V (Min./Typ./Max.) | ||
| Consumption | 7.2W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 344.218(W)×193.622(H) mm, outline size of 350.72(W)×216.14(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 280g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE156QUM-N6C can provides 600 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + FRC gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 100% (Adobe). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE156QUM-N6C utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
