Product Details:
|

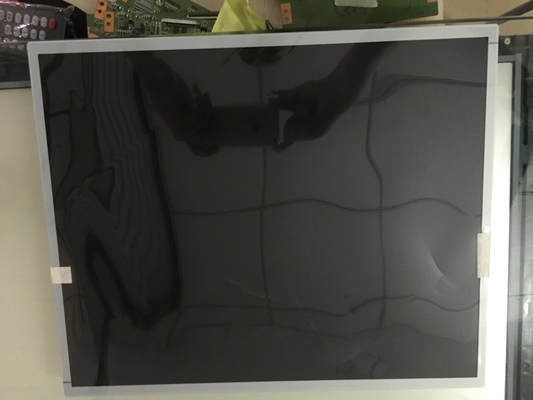

| Brand: | BOE | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Luminance: | 350 (Typ.)(cd/m²) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C |

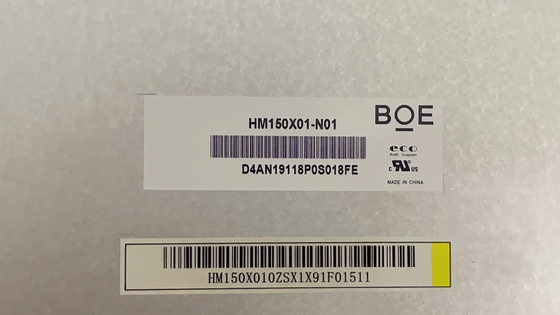

| Basic Information : | Brand | Model | HM150X01-N01 1 Compatible | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 15.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] | |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.3(H) × 231.3(V) |
| Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 7.22/10 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 850g (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 8 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 59% | sRGB | 74% coverage |
| Adobe RGB | 59% coverage | DCI-P3 | 61% coverage | |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 520/700mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.72W (Typ.) | |||||
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||

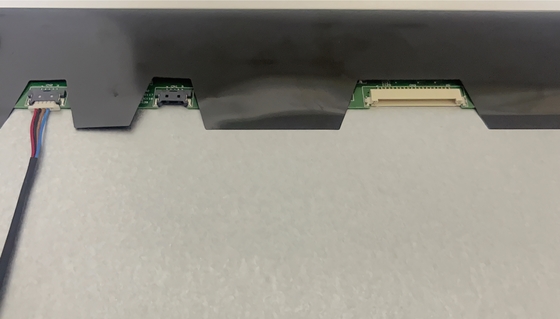

| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF14H-20P-1.25H | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-060A | |
| Backlight Features: | Shape | 3 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Quantity | 9S3P | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 27.9±1.8V | Current Supply | 60mA (Typ.) | ||
| Consumption | 4.7/5.1/5.4W (Min./Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 5 pins | |||||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | 500±34mA | ||
| Consumption | 6.0±0.4W | |||||

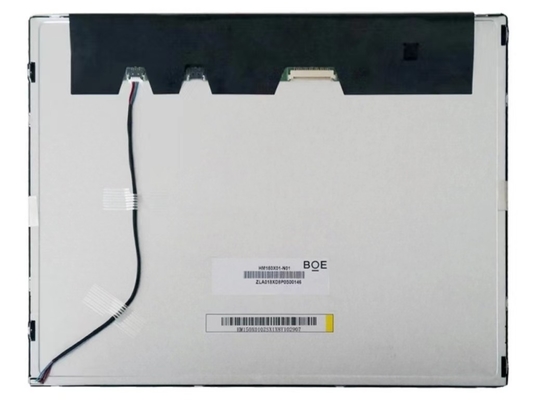

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10(D) mm, viewing area size of 307.3(W)×231.3(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 850g (Typ.). As a TN, Normally White, Transmissive LCM product, HM150X01-N01 can provides 350 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 60% (NTSC). This product adopted 9S3P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. HM150X01-N01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
