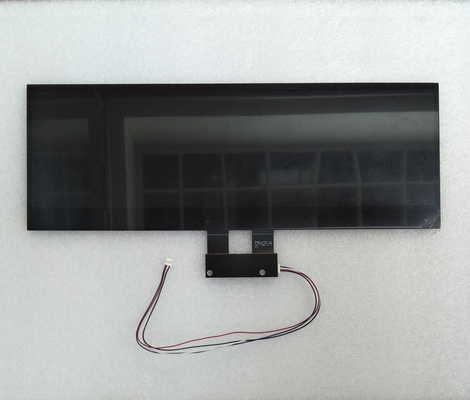

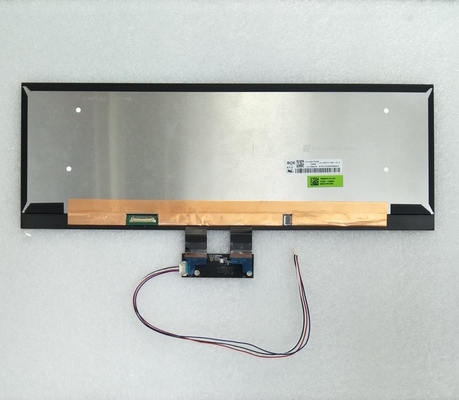

Product Details:
|
| Brand: | BOE | Diagonal Size: | 14.1" |
|---|---|---|---|
| Resolution: | 3840(RGB)×1100 283PPI | Brightness: | 300 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10 | Environment: | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 65 °C |

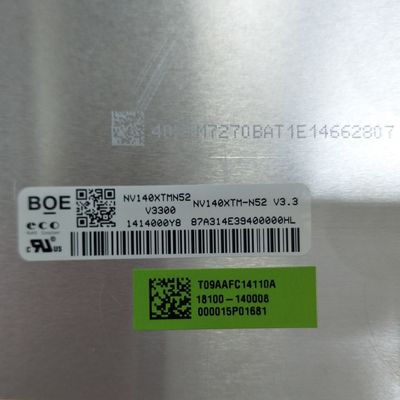

| Basic Information : | Brand | Model | NV140XTM-N52 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 14.1" (Native bar) | Alias | BOE085F | |
| Environment : | Storage Temp. | -20 ~~ 65 °C | Operating Temp. | 0 ~~ 60 °C |
| Pixel Features : | Resolution | 3840(RGB)×1100 | Dot Pitch(mm) | 0.02988×0.08964 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.08964×0.08964 (H×V) [283PPI] | |
| Mechanical Size : | Active Area(mm) | 344.218(H) × 98.604(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 350.52(H) × 118.65(V) | Depth(mm) | 2.5 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | >3:1 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 170g (Max.) | Treatment | Hard coating |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.319; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6172K | White Uniformity | 1.25/1.49 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 330/360mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.1W (Max.) | |||||
| Signal Type : | eDP (2 Lanes), eDP1.3, HBR2 (5.4G/lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS050-L30B-C10 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020V | |
| Backlight Features: | Shape | 6 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 10S6P | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in signal interface | ||

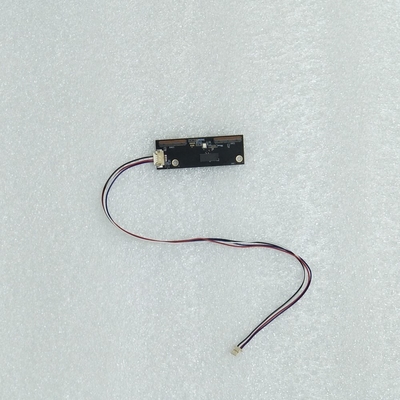

| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5/12/21V (Min./Typ./Max.) | Current Supply | - | ||
| Consumption | 2.0W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 344.218(W)×98.604(H) mm, outline size of 350.52(W)×118.65(H)×2.5(D) mm, with surface treament of Hard coating, net weight of 170g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV140XTM-N52 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV140XTM-N52 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
