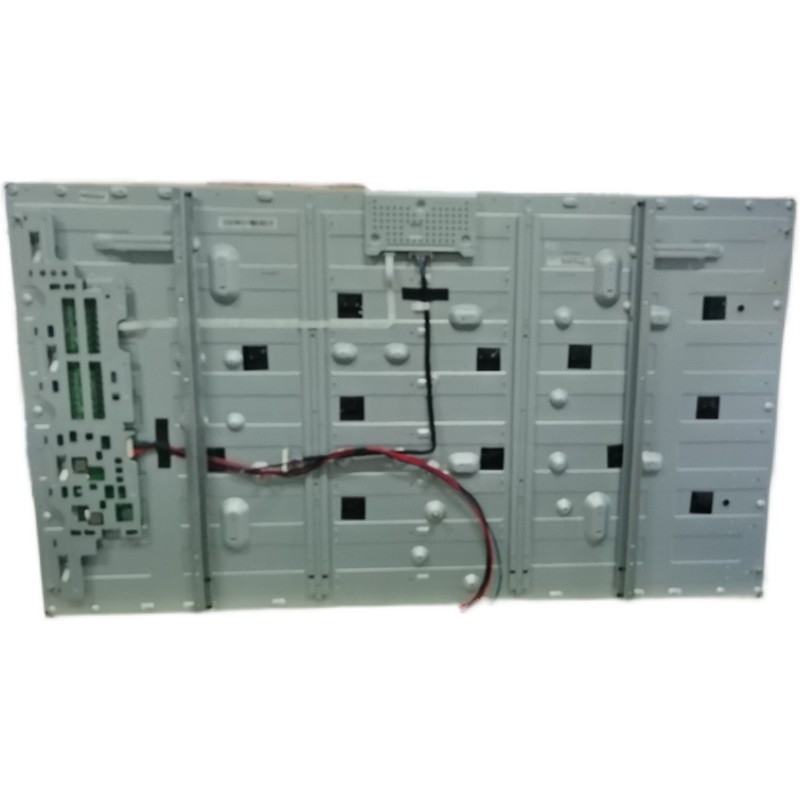

Product Details:
|
| Brand: | BOE | Diagonal Size: | 46" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 47PPI | Brightness: | 500 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| DV460FHM-NV0 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 8 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ADS, Normally Black, Transmissive | 1200 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 9969K | 16.7M (8-bit) | X:0.280; Y:0.290 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 96% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
| Panel Size : | 46" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1080 [FHD] | RGB Vertical Stripe | 0.53025×0.53025 [47PPI] | 0.17675×0.53025 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 1018.08(H) × 572.67(V) | 1018.38(H) × 572.79(V) | 1021.98(H) × 576.57(V) | 39.9/59 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Videowall Seam |
| Flat Rectangle | Landscape type | 16:9 (H:V) | 3.9 mm (Active to Active) | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 11.6Kgs (Typ.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| CviLux | CI0114M1HR0-NH | 2.0 mm | 14 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 24.0±2.4V | 5.2/6.0A (Typ./Max.) | 130W (Typ.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 560/950mA (Typ./Max.) | 6.8/11.4W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (2 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| UJU | IS050-C51B-C39-S | 0.5 mm | 51 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1018.08(W)×572.67(H) mm, outline size of 1021.98(W)×576.57(H)×59(D) mm, viewing area size of 1018.38(W)×572.79(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 11.6Kgs (Typ.), active_to_active splicing seam 3.9 mm. As a ADS, Normally Black, Transmissive LCM product, DV460FHM-NV0 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. DV460FHM-NV0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
