Product Details:
|
| Brand: | LG Display | Diagonal Size: | 55" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 40PPI | Luminance: | 700 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Min.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Info : | Panel Brand | Panel Model | LD550DUN-THA6 | |
|---|---|---|---|---|
| Diagonal Size | 55" | Application |
|
|

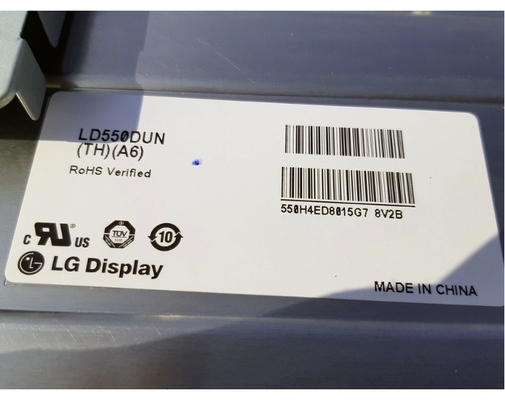

| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LD550DUN (TH)(A6) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.210×0.630 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.630×0.630 mm (H×V) [40PPI] | |
| Mechanical Size : | Display Area | 1209.6×680.4 mm (H×V) | Bezel Area | - |
| Outline Dim. | 1211.4×682.2 mm (H×V) | Outline Depth | 53.3 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Videowall Seam : | 1.8 mm (Active to Active) | |||
| Other Features : | Weight | 13.5/14.9Kgs (Typ./Max.) | Surface | Antiglare (Haze 44%), Hard coating (3H) |
| Basic Information : | Brightness | 700 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Optical Mode | S-IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 8 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.279; Wy:0.292 | Color Numbers | 1.06B (8-bit + Dithering) |
| Color Temperature | 9972K | White Uniformity | 1.11/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 99% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 6K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Direct light type | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 20022WR-14B2 | 2.0 mm | 14 pins | 1 pcs | ||
| YEONHO | 20022WR-12B2 | 2.0 mm | 12 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 24.0±2.4V | Current Input | 8.78/9.2A (Typ./Max.) | ||
| Consumption | 210.6/238.1W (Typ./Max.) | |||||
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 0.83/1.08A (Typ./Max.) | ||
| Consumption | 10.0/13W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-RE51S-HF | 0.5 mm | 51 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1211.4(W)×682.2(H) mm, with surface treament of Antiglare (Haze 44%), Hard coating (3H), net weight of 13.5/14.9Kgs (Typ./Max.), active_to_active splicing seam 1.8 mm. As a S-IPS, Normally Black, Transmissive LCM product, LD550DUN-THA6 can provides 700 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 6K hours, With LED Driver. LD550DUN-THA6 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
