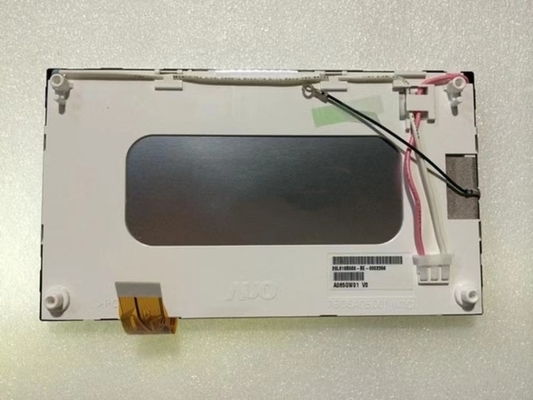

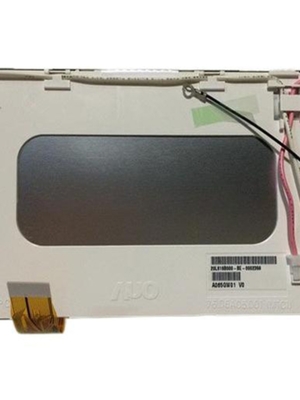

Product Details:
|
| Brand: | AU Optronics | Diagonal Size: | 6.5" |
|---|---|---|---|
| Resolution: | 400(RGB)×234 71PPI | Brightness: | 500 Cd/m² |
| Viewing Angle: | 60/60/40/55 (Typ.)(CR≥10) | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| A065GW01 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 85 °C | -40 ~ 95 °C |
| Screen Size : | 6.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 400(RGB)×234 | RGB Vertical Stripe | 0.1195×0.339 mm | 0.3585×0.339 mm [71PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 143.4×79.326 mm | - | 157.2×89.8 mm | 7.8/13.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 142±10g | - | Antiglare (Haze 5.5%) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 60/60/40/55 (Typ.)(CR≥10) | 15/20 (Typ.)(Tr/Td) (ms) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 40K(Typ.) | 1 pcs | L shape | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 520/550V (Typ./Max.) | 6.0/6.5mA (Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 60/80KHz (Typ./Max.) | 850/1150V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) | 3/17/0.2/0.8mA (Typ.)(ICC/IDD/IGH/IGL) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| TFT Specific Analog RGB | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 26 pins | 0.5 mm | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 143.4(W)×79.326(H) mm, outline size of 157.2(W)×89.8(H)×13.3(D) mm, with surface treament of Antiglare (Haze 5.5%), net weight of 142±10g. As a TN, Normally White, Transmissive LCM product, A065GW01 can provides 500 cd/m² display brightness 300:1 transimissive contrast ratio, 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/20 (Typ.)(Tr/Td) ms.. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, external backlight driver is additionally needed. A065GW01 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 26 pins FPC with power supply voltage of 5/5/15/-10V
