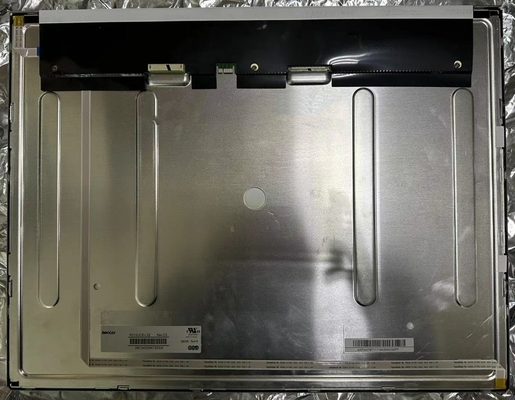

Product Details:
|
| Brand: | Innolux | Diagonal Size: | 21.3" |
|---|---|---|---|
| Resolution: | 1600(RGB)×1200, UXGA 94PPI | Luminance: | 1000 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

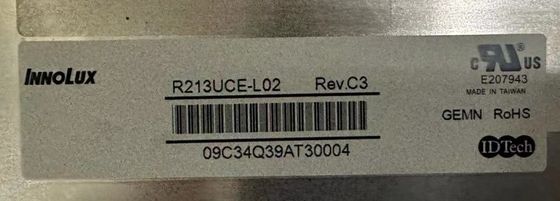

| Basic Information : | Brand | Model | R213UCE-L02 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 21.3" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1600(RGB)×1200, UXGA | Dot Pitch(mm) | 0.090×0.270 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.270×0.270 (H×V) [94PPI] | |
| Mechanical Size : | Active Area(mm) | 432(H) × 324(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 457(H) × 350(V) | Depth(mm) | 19.79 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 2.18±0.10Kgs | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 1000 (Typ.) | Contrast Ratio | 1800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 8/8 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.308; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6757K | White Uniformity | - | |
| 1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.35/0.42A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.2/5.04W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||

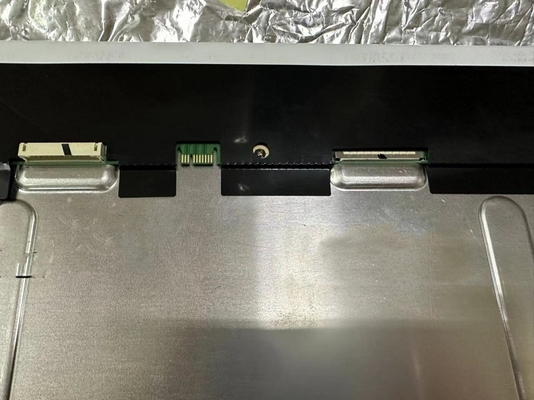

| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| P-TWO | 187114-30091 | 1 pcs | 30 pins | 1.0 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| FCN | JH2-D4-143N | 1 pcs | 14 pins | 2.0 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 2.48/2.56A (Typ./Max.) | ||
| Consumption | 29.7/30.7W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 432(W)×324(H) mm, outline size of 457(W)×350(H)×19.79(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.18±0.10Kgs. As a AAS, Normally Black, Transmissive LCM product, R213UCE-L02 can provides 1000 cd/m² display brightness 1800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/8 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. R213UCE-L02 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 12.0V (Typ.)
