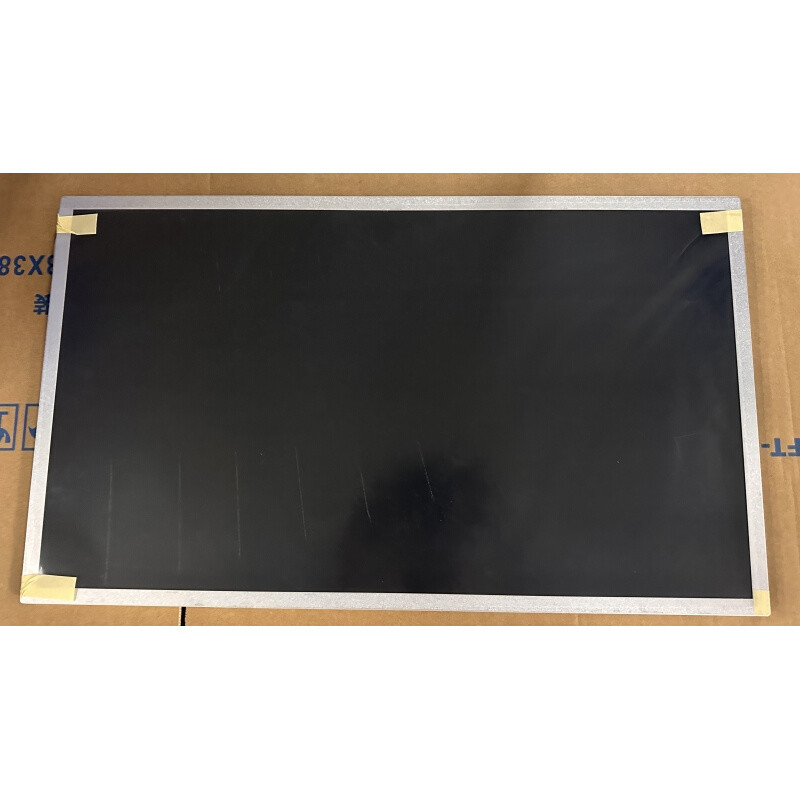

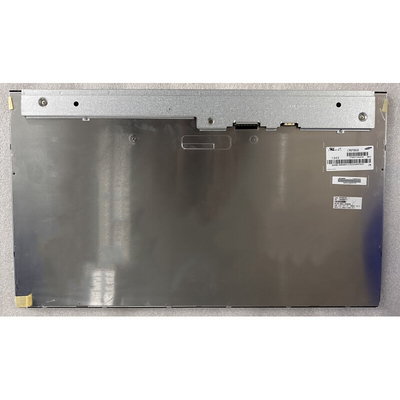

Product Details:
|
| Brand: | Samsung | Diagonal Size: | 27.0" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1440, Quad-HD 108PPI | Luminance: | 300 Cd/m²300 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|

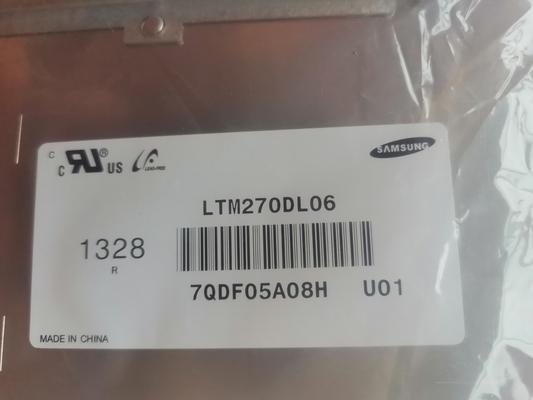

| LTM270DL06 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 12 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | PLS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 80% | 100% | 79% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 82% | 59% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
| Panel Size : | 27.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 2560(RGB)×1440 [Quad-HD] | RGB Vertical Stripe | 0.2331×0.2331 [108PPI] | 0.0777×0.2331 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 596.736(H) × 335.664(V) | 601.7(H) × 340.7(V) | 630(H) × 368.2(V) | 13.4/16.1 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Normal bezel | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 3.45Kgs (Max.) | - | Antiglare (Haze 35%), Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 16S4P | 4 strings | 40K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 52.8V (Max.) | 480/520mA (Typ./Max.) | 25.34W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| No | Connector | |||||

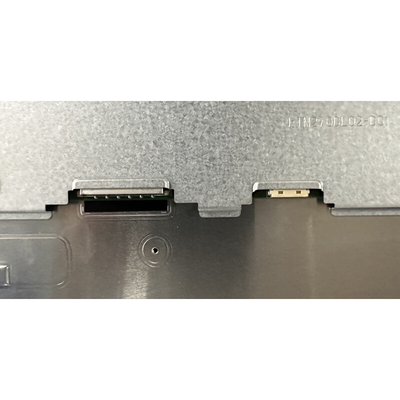

| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| molex | 104078-0610 | 1.25 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 1.40/1.70A (Typ./Max.) | 6.0W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (4 ch, 8-bit) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-RE51S-HF-J-R1500 | 0.5 mm | 51 pins | 1 pcs | ||
| molex | 104091-1020 | 1.25 mm | 10 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 630(W)×368.2(H)×16.1(D) mm, viewing area size of 601.7(W)×340.7(H) mm, with surface treament of Antiglare (Haze 35%), Hard coating (3H), net weight of 3.45Kgs (Max.). As a PLS, Normally Black, Transmissive LCM product, LTM270DL06 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 16S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 40K hours, external backlight driver is additionally needed. LTM270DL06 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 61 pins Connector with power supply voltage of 5.0V (Typ.)
