Product Details:
|
| Brand: | Samsung | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Luminance: | 250 Cd/m² |
| Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) | Max. Ratings: | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

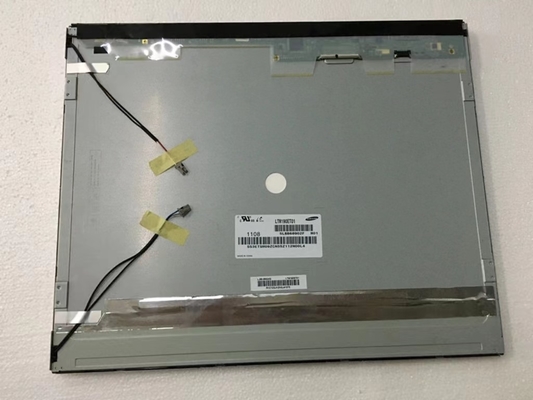

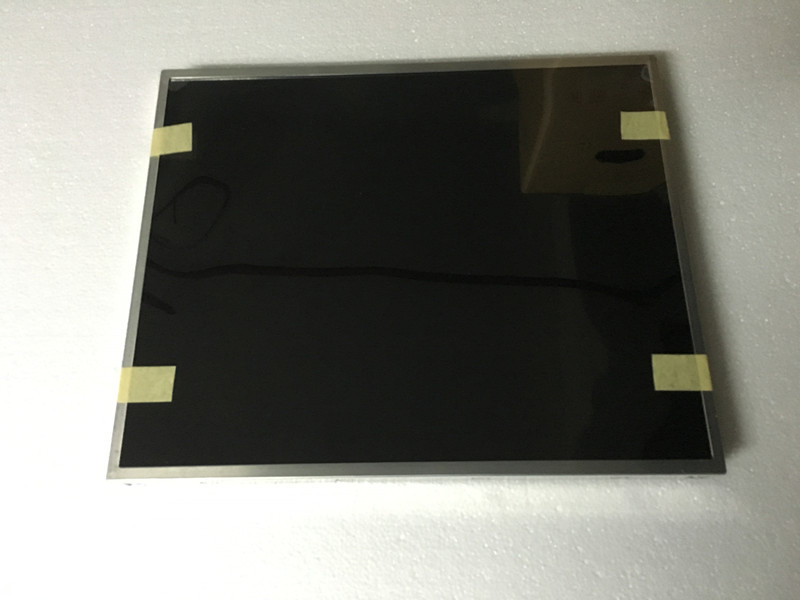

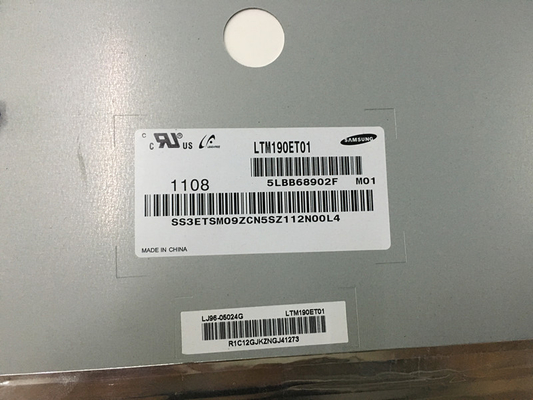

| Basic Information : | Brand | Model | LTM190ET01 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 19.0" | Alias | - | |
| Environment : | Storage Temp. | -25 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1280(RGB)×1024, SXGA | Dot Pitch(mm) | 0.098×0.294 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.294×0.294 (H×V) [86PPI] | |
| Mechanical Size : | Active Area(mm) | 376.32(H) × 301.056(V) | Bezel Area(mm) | 380.2(H) × 305.0(V) |
| Outline Dim.(mm) | 396(H) × 324(V) | Depth(mm) | 17.0 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 5:4 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 2.20Kgs (Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 5 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | - | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | - | White Uniformity | 1.33 (Max.)(9 points) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | TBD | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30O-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 2 pcs | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 650V (Typ.) | Current Supply | 2.0/7.5/8.0mA (Min./Typ./Max.) | ||
| Frequency | 40/60KHz (Min./Max.) | Startup Voltage | 1450/1650V (Max.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | 35001HS-02L | 2 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×324(H)×17(D) mm, viewing area size of 380.2(W)×305.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.20Kgs (Max.). As a TN, Normally White, Transmissive LCM product, LTM190ET01 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. LTM190ET01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
