Product Details:
|
| Brand: | Samsung | Diagonal Size: | 17.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 96PPI | Luminance: | 280 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 65 °C |

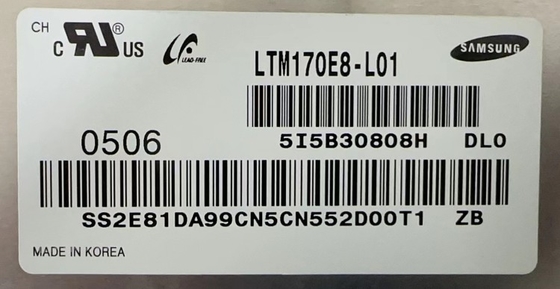

| Basic Info : | Panel Brand | Panel Model | LTM170E8-L01 3 Compatible | |
|---|---|---|---|---|
| Diagonal Size | 17.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 65 °C |
| Pixel Features : | Pixel Format | 1280(RGB)×1024 [SXGA] | Dot Pitch | 0.088×0.264 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.264×0.264 mm (H×V) [96PPI] | |
| Mechanical Size : | Display Area | 337.92×270.336 mm (H×V) | Bezel Area | 340.92×273.336 mm (H×V) |
| Outline Dim. | 354.9×290.3 mm (H×V) | Outline Depth | 12.8±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 5:4 (H:V) | Shape Style | Normal bezel | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.70Kgs (Max.) | Surface | Antiglare (Haze 44%), Hard coating (3H) |
| Basic Information : | Brightness | 280 cd/m² (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | PVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 15/10 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | - | |
| 1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |

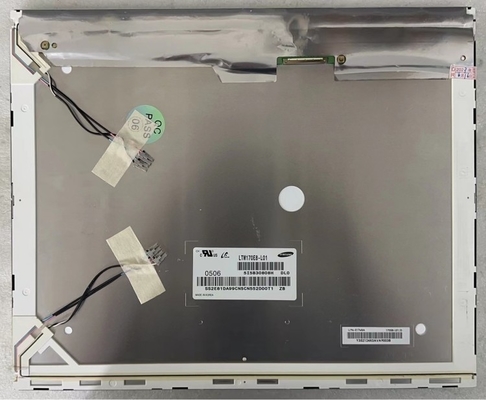

| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 4 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 630V (Typ.) | Current Input | 3.0/6.5/7.5mA (Min./Typ./Max.) | ||
| Frequency | 40/60KHz (Min./Max.) | Kick-off Voltage | 1210/1580V (Max.)(Ta=+25/0℃) | |||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 35001HS-02L | 3.5 mm | 2 pins | 4 pcs | BLL-2PINS-HL | |
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.8A (Typ.) | ||
| Interface Features : | Type | Connector | Position | - | ||

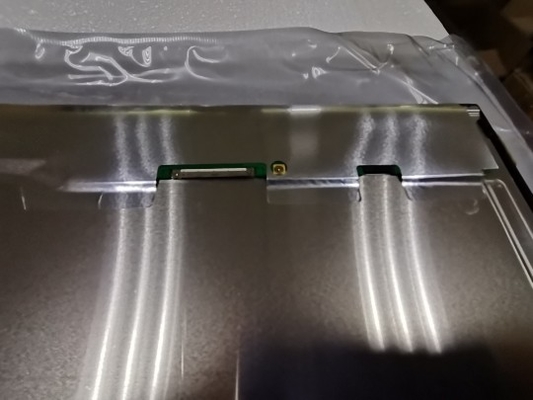

| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| UJU | IN-30-OB100 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 337.92(W)×270.336(H) mm, outline size of 354.9(W)×290.3(H)×13.3(D) mm, viewing area size of 340.92(W)×273.336(H) mm, with surface treament of Antiglare (Haze 44%), Hard coating (3H), net weight of 1.70Kgs (Max.). As a PVA, Normally Black, Transmissive LCM product, LTM170E8-L01 can provides 280 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 4 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. LTM170E8-L01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
