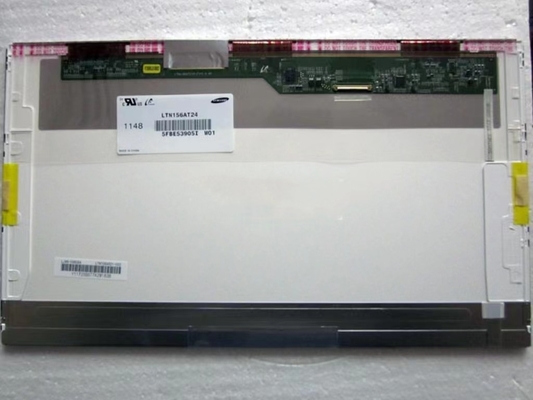

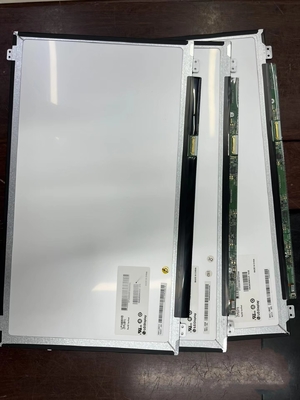

Product Details:
|
| Brand: | Samsung | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 100PPI | Luminance: | 220 Cd/m² |
| Viewing Angle: | 45/45/15/30 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Basic Information : | Brand | Model 16 Compatible | Type | Model Alias |
|---|---|---|---|---|
| LTN156AT24-W01 | a-Si TFT-LCD , LCM | SEC324A | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 15.6 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.084×0.252 mm | 0.252×0.252 mm [100PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 344.232×193.536 mm | 348.8×197.0 mm | 359.3×209.5 mm | 5.1/5.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Wedge (PCBA Bent, T≥5.2mm) | |
| Fixation : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 450g (Max.) | Glare (Haze 0%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/15/30 (Typ.)(CR≥10) | 6 o'clock | 16 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 60% | 79% | 62% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 62% | 45% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.70 (Max.)(13 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 240/264mA (Typ./Max.) | 3.3V (Typ.) | 0.79W (Typ.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (1 ch, 6-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-040E-12 | 1 pcs | 0.5 mm | 40 pins | LVDS-40P1C6B-040B | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 4S1P | 10K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 115mA (Typ.) | 26.4V (Typ.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| - | 6.0/12.0/24.0V (Min./Typ./Max.) | 3.9W (Max.) | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 359.3(W)×209.5(H)×5.5(D) mm, viewing area size of 348.8(W)×197.0(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 450g (Max.), shape stype of Wedge (PCBA Bent, T≥5.2mm). As a TN, Normally White, Transmissive LCM product, LTN156AT24-W01 can provides 220 cd/m² display brightness 400:1 transimissive contrast ratio, 45/45/15/30 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted 4S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With LED Driver. LTN156AT24-W01 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
