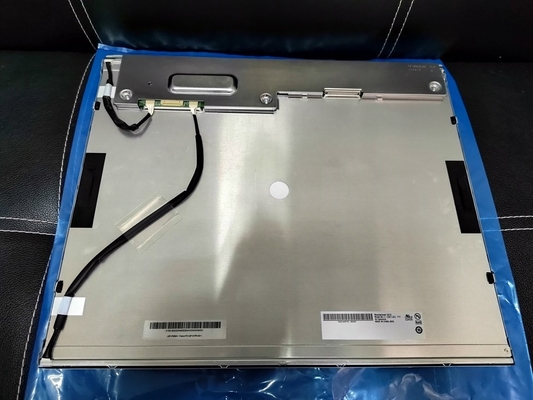

Product Details:
|
| Brand: | AUO | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Luminance: | 300 Cd/m² |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Detail : | Manufacturer | Model Name | M190EG02 V4 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | M190EG02 V.4 | |
| Panel Size | 19.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 3.6/1.4 (Typ.)(Tr/Td), 5 (Typ.)(G to G) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1280(RGB)×1024 [SXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.098×0.294 mm | Pixel Pitch(W×H) | 0.294×0.294 mm [86PPI] | |
| Physical Size : | Active Viewing | 376.32(W)×301.056(H) mm | Overall Dim. | 396(W)×324(H) mm |
| Bezel Opening | 380.32(W)×305.06(H) mm | Overall Depth | 11.85/16.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 5:4 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 2.00Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 1.02/1.34A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 5.11/6.71W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-XB30SSL-HF15 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-190A | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 4 pcs | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 3.0/7.5/8.0mA (Min./Typ./Max.) | Input Voltage | 544/653/783V (Min./Typ./Max.) | ||
| Frequency | 60±20KHz | Turn-on Voltage | 1300/1690V (Min.)(Ta=+25/0℃) | |||
| Consumption | 19.6/21.56W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| YEONHO | 35001HS-02L | 4 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×324(H)×16.8(D) mm, viewing area size of 380.32(W)×305.06(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.00Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, M190EG02 V4 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 3.6/1.4 (Typ.)(Tr/Td), 5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 4 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. M190EG02 V4 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
