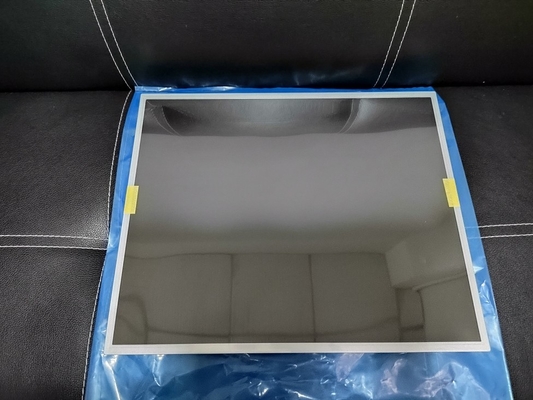

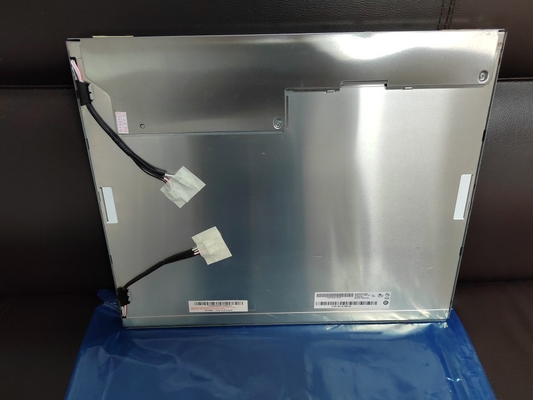

Product Details:
|
| Brand: | AUO | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Luminance: | 450 Cd/m² |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

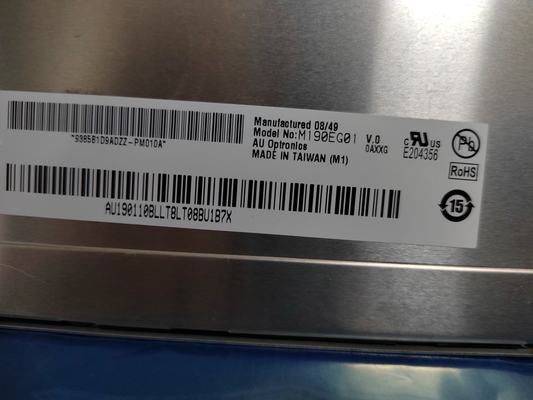

| Basic Info : | Panel Brand | Panel Model | G190EG01 V0 | |
|---|---|---|---|---|
| Diagonal Size | 19.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G190EG01 V.0 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 1280(RGB)×1024 [SXGA] | Dot Pitch | 0.098×0.294 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.294×0.294 mm (H×V) [86PPI] | |
| Mechanical Size : | Display Area | 376.32×301.056 mm (H×V) | Bezel Area | 380.32×305.06 mm (H×V) |
| Outline Dim. | 396×324 mm (H×V) | Outline Depth | 18.5±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 5:4 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 2.40Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 3.6/1.4 (Typ.)(Tr/Td), 8 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Amount | 4 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 707V (Typ.) | Current Input | 3.0/7.5/8.0mA (Min./Typ./Max.) | ||
| Frequency | 40/60/80KHz (Min./Typ./Max.) | Kick-off Voltage | 1000/1200V (Max.)(Ta=+25/0℃) | |||
| Consumption | 21.21W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 35001HS-02L | 3.5 mm | 2 pins | 4 pcs | BLL-2PINS-HL | |
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 1.37/1.63A (Typ./Max.) | ||
| Consumption | 6.85/8.15W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-XB30SSL-HF15 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-190A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×324(H)×19(D) mm, viewing area size of 380.32(W)×305.06(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.40Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, G190EG01 V0 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 3.6/1.4 (Typ.)(Tr/Td), 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 4 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. G190EG01 V0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
