Product Details:
|
| Brand: | BOE | Diagonal Size: | 32.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 69PPI | Luminance: | 400 (Typ.)(cd/m²) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

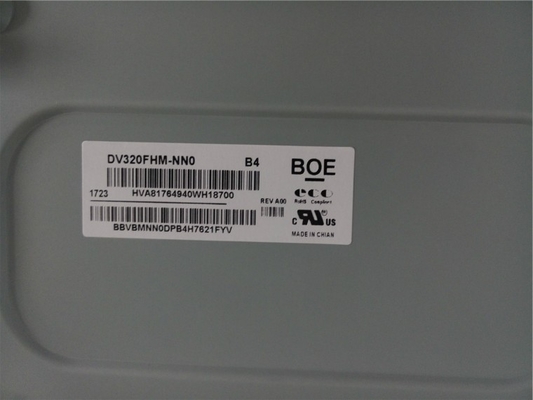

| Basic Detail : | Manufacturer | Model Name | DV320FHM-NN0 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 32.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 8 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADSDS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.280; Wy:0.290 | Support Color | 16.7M (8-bit) |
| Color Temperature | 9969K | White Uniformity | 1.38 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 76% | sRGB | 97% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.12125×0.36375 mm | Pixel Pitch(W×H) | 0.36375×0.36375 mm [69PPI] | |
| Physical Size : | Active Viewing | 698.4(W)×392.85(H) mm | Overall Dim. | 716.2(W)×415.05(H) mm |
| Bezel Opening | - | Overall Depth | 8.95 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 4.00Kgs (Typ.) | Surface | Antiglare (Haze 1%) |
| Signal Electrical : | Input Current | 333/630mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.0/7.6W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | IS050-C51B-C39-S | 1 pcs | 0.5 mm | 51 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 2.0 mm | 14 pins | ||||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 0.7/2.0A (Typ./Max.) | Input Voltage | 24.0V (Typ.) | ||
| Consumption | 36/63.75W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 698.4(W)×392.85(H) mm, outline size of 716.2(W)×415.05(H) mm, with surface treament of Antiglare (Haze 1%), net weight of 4.00Kgs (Typ.). As a ADSDS, Normally Black, Transmissive LCM product, DV320FHM-NN0 can provides 400 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. DV320FHM-NN0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
