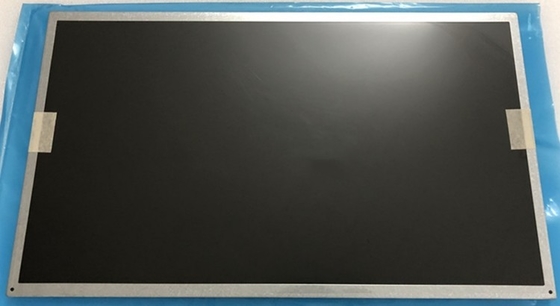

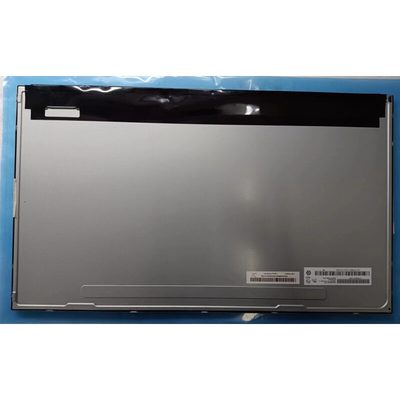

Product Details:
|
| Brand: | BOE | Diagonal Size: | 21.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 102PPI | Luminance: | 500 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: -20 ~ 85 °C ; Storage Temperature: -20 ~ 85 °C |
| Basic Detail : | Manufacturer | Model Name | DV215FHM-R01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 21.5 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 85 °C | ST Temperature | -20 ~ 85 °C |
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 17 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.285; Wy:0.293 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 9289K | White Uniformity | 1.33 (Typ.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 97% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.08275×0.24825 mm | Pixel Pitch(W×H) | 0.24825×0.24825 mm [102PPI] | |
| Physical Size : | Active Viewing | 476.64(W)×268.11(H) mm | Overall Dim. | 495.6(W)×292.2(H) mm |
| Bezel Opening | 479.8(W)×271.3(H) mm | Overall Depth | 8.2/11.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.93Kgs | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Signal Electrical : | Input Current | 0.75/1.5A (Typ./Max.) | Input Voltage | 5.5V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 3.5/6.75W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | IS100-L30O-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 102mA (Typ.) | Input Voltage | 51/65.1V (Typ./Max.) | ||
| Consumption | 20.81/22.89W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3707K-Q06N-08X | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.64(W)×268.11(H) mm, outline size of 495.6(W)×292.2(H)×11.2(D) mm, viewing area size of 479.8(W)×271.3(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.93Kgs. As a ADS, Normally Black, Transmissive LCM product, DV215FHM-R01 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 17 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. DV215FHM-R01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.5V (Typ.).
