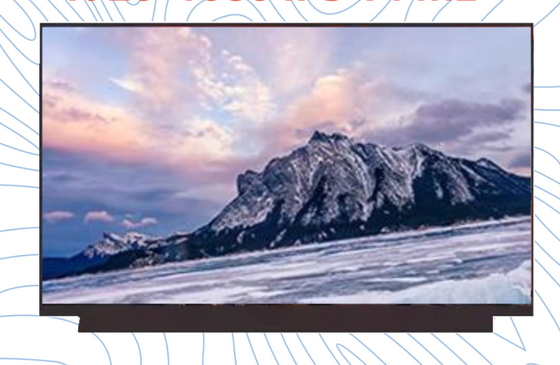

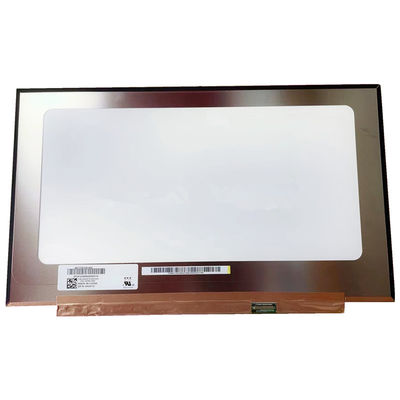

Product Details:
|
| Brand: | BOE | Diagonal Size: | 16.1" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 137PPI | Brightness: | 250 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Detail : | Manufacturer | Model Name | NV161FHM-NX2 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | BOE09F1 | |
| Panel Size | 16.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 13 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 46% | sRGB | 65% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0617×0.1851 mm | Pixel Pitch(W×H) | 0.1851×0.1851 mm [137PPI] | |
| Physical Size : | Active Viewing | 355.392(W)×199.908(H) mm | Overall Dim. | 361.9(W)×222.59(H) mm |
| Bezel Opening | - | Overall Depth | 3.2 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 385g (Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 758mA (Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.5W (Max.) | Signal Interface | eDP (4 Lanes), HBR2 (5.4G/lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |

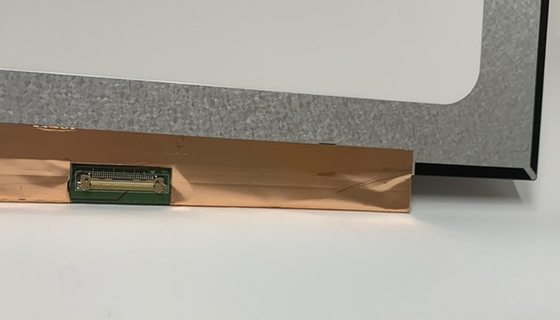

| STM | MSAK24025P40G | 1 pcs | 0.5 mm | 40 pins | ||
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 10S6P | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | - | Input Voltage | 5/12/21V (Min./Typ./Max.) | ||
| Consumption | 3.5W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 355.392(W)×199.908(H) mm, outline size of 361.9(W)×222.59(H)×3.2(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 385g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV161FHM-NX2 can provides 250 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 46% (NTSC). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV161FHM-NX2 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
