Product Details:
|

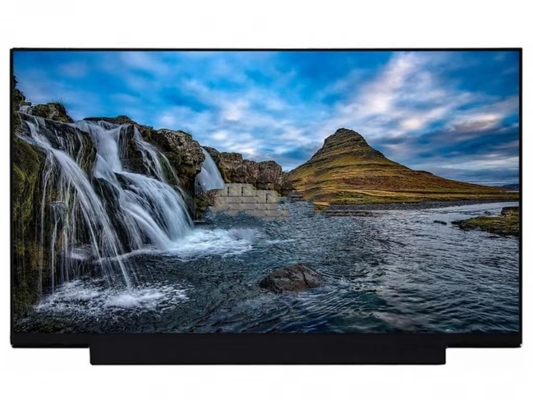

| Brand: | BOE | Diagonal Size: | 17.3" |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+ 106PPI | Luminance: | 250 (Typ.)(cd/m²) |
| Viewing Angle: | 45/45/20/40 (Min.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

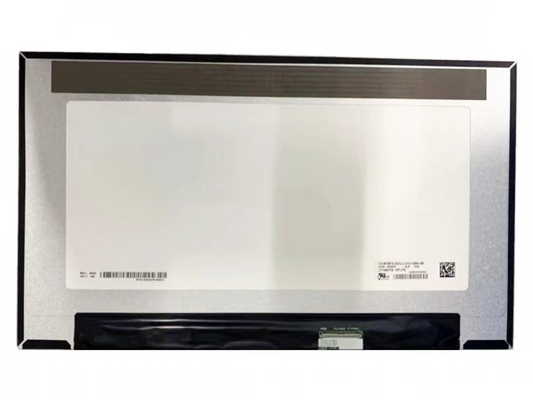

| Basic Information : | Brand | Model | NT173WDM-N25 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 17.3" | Alias | BOE0954 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1600(RGB)×900, HD+ | Dot Pitch(mm) | 0.0796×0.2388 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2388×0.2388 (H×V) [106PPI] | |
| Mechanical Size : | Active Area(mm) | 382.08(H) × 214.92(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 389.88(H) × 236.52(V) | Depth(mm) | 3.3/3.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 480g (Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/20/40 (Min.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 12 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 61% | sRGB | 81% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 63% coverage | |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 213mA (Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.7W (Max.) | |||||
| Signal Type : | eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane) | Signal Voltage | - | |||

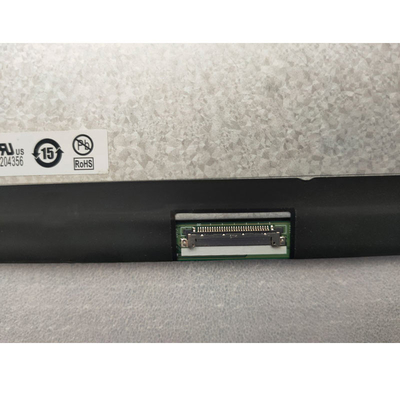

| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSAK24025P30 | 1 pcs | 30 pins | 0.5 mm | EDP-30P1L-030A | |
| Backlight Features: | Shape | 5 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 10S5P | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - | ||
| Consumption | 3.4W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 382.08(W)×214.92(H) mm, outline size of 389.88(W)×236.52(H)×3.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 480g (Max.), shape stype of Flat (PCBA Flat, T3.4~4.0mm). As a TN, Normally White, Transmissive LCM product, NT173WDM-N25 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 45/45/20/40 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NT173WDM-N25 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
