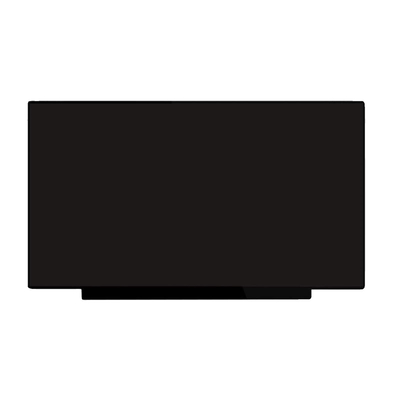

Product Details:
|
| Brand: | BOE | Diagonal Size: | 17.3" |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+ 106PPI | Brightness: | 250 Cd/m² |
| Signal Interface EDP (1 Lane) , EDP1.2 , HBR1 (2.7G/lane) , 30 Pins Connector Input Voltage 3.3V (Ty: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C | Viewing Angle: | 45/45/15/30 (Min.)(CR≥10) |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| NT173WDM-N23 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 45/45/15/30 (Min.)(CR≥10) | 12 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 61% | 81% | 63% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 63% | 45% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.67 (Max.)(5/13 points) | ||
| Panel Size : | 17.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1600(RGB)×900 [HD+] | RGB Vertical Stripe | 0.2388×0.2388 [106PPI] | 0.0796×0.2388 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 382.08(H) × 214.92(V) | - | 389.88(H) × 236.52(V) | 3.3/3.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Flat (PCBA Flat, T3.4~4.0mm) | |
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 480g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10S5P | 5 strings | 15K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 5.0/12.0/21.0V (Min./Typ./Max.) | 266mA (Max.) | 3.2W (Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 213mA (Max.) | 0.7W (Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane) | Connector | |||||

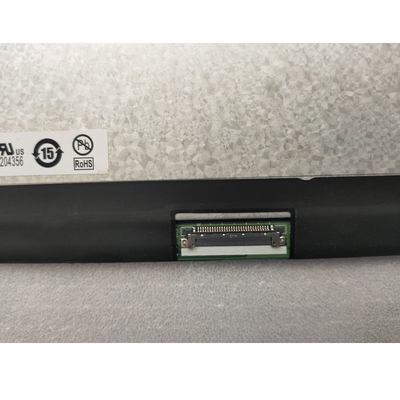

| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSAK24025P30 | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 382.08(W)×214.92(H) mm, outline size of 389.88(W)×236.52(H)×3.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 480g (Max.), shape stype of Flat (PCBA Flat, T3.4~4.0mm). As a TN, Normally White, Transmissive LCM product, NT173WDM-N23 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 45/45/15/30 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NT173WDM-N23 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
