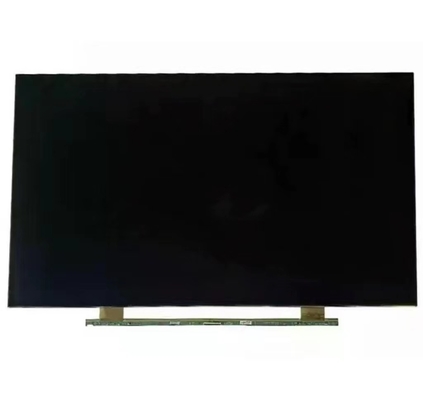

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 32.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 49PPI | Brightness: | 0 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Min.)(CR≥10 | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LC320DXY-SMA8 | a-Si TFT-LCD , CELL | LC320DXY (SM)(A8) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 32.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.17025×0.51075 mm | 0.51075×0.51075 mm [49PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 697.685×392.256 mm | - | 715×411 mm | 1.30 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Plate Thickness |
| Flat Rectangle | 16:9 (W : H) | Landscape type | - | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 860/900g (Typ./Max.) | Antiglare (Haze 3%), Hard coating (2H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 0 cd/m² | IPS, Normally Black, Transmissive | 1100:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 7 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 16.7M (6-bit + Hi-FRC) | - | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 75% | 96% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 78% | 56% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Transmittance : | 6.32% (Typ.)(with Polarizer) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 201/261mA (Typ./Max.) | 12.0V (Typ.) | 2.4/3.1W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-X30SSL-HF | 1 pcs | 1.0 mm | 30 pins | ||
| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| EPS Box | 17 | 1 | N/A | N/A | N/A | |
| Pallet | 272 | 16 | 1140×910×1110 | N/A | 1.1515 |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.685(W)×392.256(H) mm, outline size of 715(W)×411(H)×1.3(D) mm, with surface treament of Antiglare (Haze 3%), Hard coating (2H), net weight of 860/900g (Typ./Max.). As a IPS, Normally Black, Transmissive CELL product, LC320DXY-SMA8 can provides 1100:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 7 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product have no backlight. LC320DXY-SMA8 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 12.0V (Typ.).
