Product Details:
|
| Brand: | CSOT | Diagonal Size: | 21.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 102PPI | Luminance: | 0 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

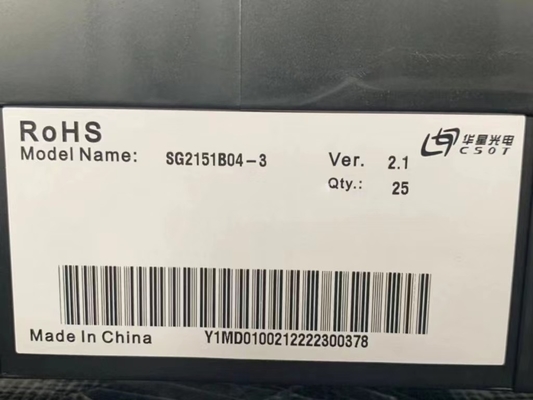

| Basic Info : | Panel Brand | Panel Model | SG2151B04-3 | |
|---|---|---|---|---|
| Diagonal Size | 21.5" | Application | ||
| Panel Type | a-Si TFT-LCD , CELL | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.08275×0.24825 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.24825×0.24825 mm (H×V) [102PPI] | |
| Mechanical Size : | Display Area | 476.64×268.11 mm (H×V) | Bezel Area | - |
| Outline Dim. | 487.44×279.21 mm (H×V) | Outline Depth | 1.34 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Plate Thickness | 0.50+0.50 mm | |
| Other Features : | Weight | 420g (Typ.) | Surface | Antiglare (Haze 2%), Hard coating (3H) |
| Basic Information : | Brightness | 0 cd/m² | Contrast Ratio | 4000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | HVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 6.5 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.276; Wy:0.280 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 11137K | White Uniformity | - | |
| 1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 97% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | No | Transmittance | 4.4% (Typ.) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| D-IC Detail : | COF Built-in 6 source chips |
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.35/0.46A (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 1-301223-0 | 30 pins | 1 pcs | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.64(W)×268.11(H) mm, outline size of 487.44(W)×279.21(H)×1.34(D) mm, with surface treament of Antiglare (Haze 2%), Hard coating (3H), net weight of 420g (Typ.), utilizing 0.50+0.50 mm mm plate. As a HVA, Normally Black, Transmissive CELL product, SG2151B04-3 can provides 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product have no backlight. SG2151B04-3 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.
