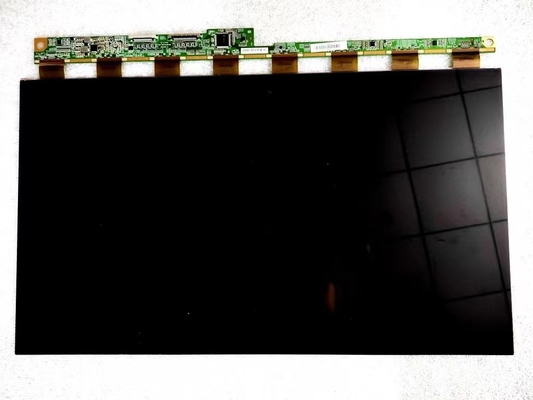

Product Details:
|
| Brand: | BOE | Diagonal Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 92PPI | Luminance: | 0 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| MV238FHB-NG0 | a-Si TFT-LCD , CELL | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 0 | 89/89/89/89 (Typ.)(CR≥10) | 5 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ADS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| Transmissivity : | 3.35% (Typ.)(with Polarizer) | ||
| Panel Size : | 23.8" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1080 [FHD] | RGB Vertical Stripe | 0.2745×0.2745 [92PPI] | 0.0915×0.2745 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 527.04(H) × 296.46(V) | - | 543.84(H) × 308.07(V) | 1.43 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Plate Thickness |
| Flat Rectangle | Landscape type | 16:9 (H:V) | 0.50+0.50 mm | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 2.20Kgs (Typ.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 144Hz |

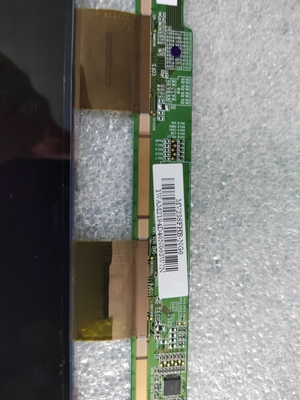

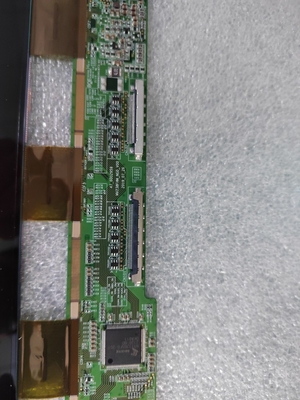

| Driver IC : | COF Built-in 8 source chips |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 0.9/2.4A (Typ./Max.) | 4.5/12.0W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (4 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| GT05S-H38-E1500 | 51 pins | 1 pcs | ||||
| UJU | IS050-C41B-C39-S | 0.5 mm | 41 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 543.84(W)×308.07(H)×1.43(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.20Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, MV238FHB-NG0 can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product have no backlight, external backlight driver is additionally needed. MV238FHB-NG0 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 5.0V (Typ.)
