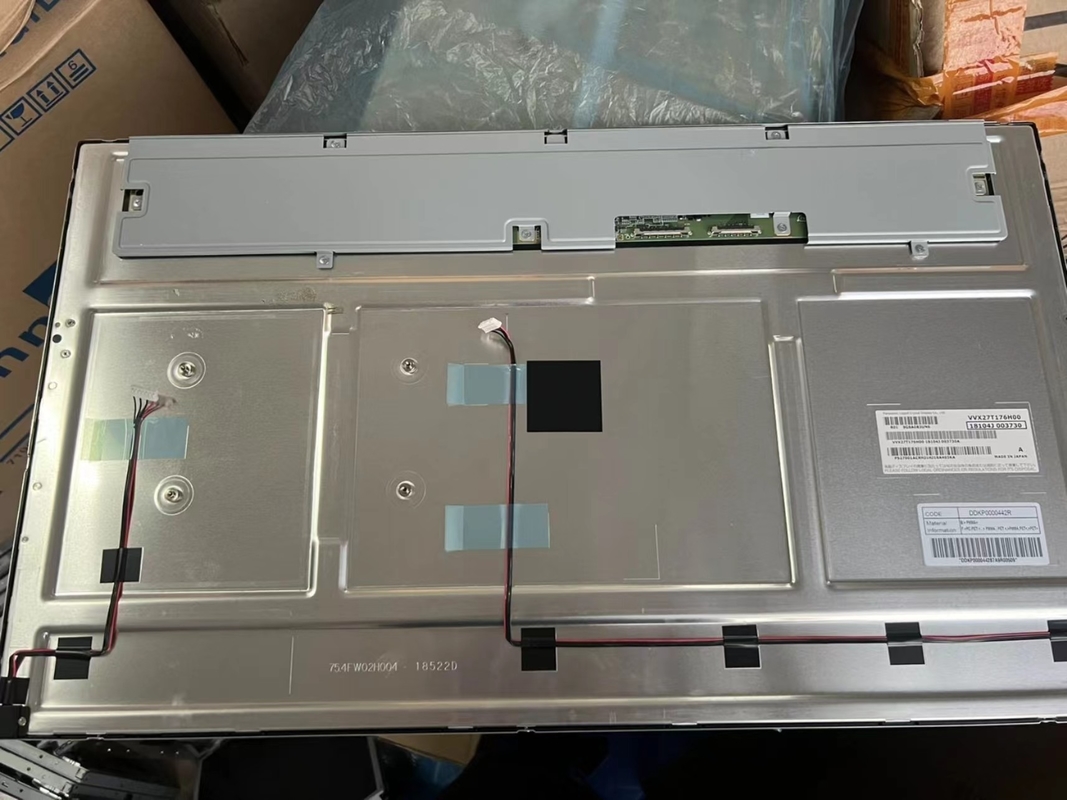

Product Details:
|

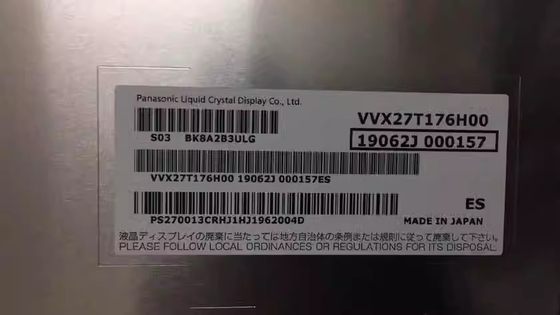

| Brand: | Panasonic | Diagonal Size: | 27.0" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1440, Quad-HD 108PPI | Viewing Angle: | 89/89/89/89 (Min.)(CR≥10) |
| Luminance: | 350 Cd/m² | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| VVX27T176H00 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 27.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 2560(RGB)×1440, Quad-HD | RGB Vertical Stripe | 0.0777×0.2331 mm | 0.2331×0.2331 mm [108PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 596.736×335.664 mm | 602×340.7 mm | 630×368.2 mm | 12.6/17.3 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 3.30Kgs (Typ.) | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 11/9 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 8440K | 1.07B (10-bit) | X:0.291; Y:0.301 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 109% | 100% | 99% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 98% | 81% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.56/0.68A (Typ./Max.) | 12.0V (Typ.) | - | ||||

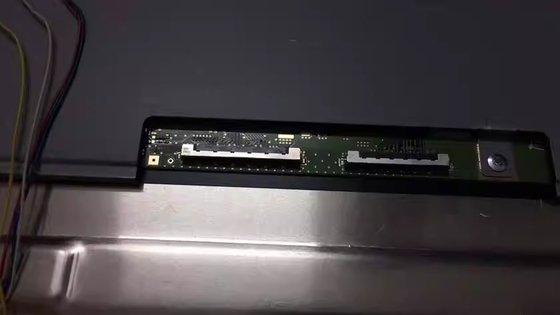

| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (4 ch, 10-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-RNE51SZ-HF-R1500 | 1 pcs | 0.5 mm | 51 pins | ||
| JAE | FI-RE41HL | 1 pcs | 0.5 mm | 41 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3 strings × 2CN | 12S3P×2CN | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 84/88.2mA (Typ./Max.) | 64.1±5V | 32.3/34.8W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | PHR-7 | 2 pcs | 2.0 mm | 7 pins | BLE-7PINS-ANCNCNC | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 630(W)×368.2(H)×17.3(D) mm, viewing area size of 602(W)×340.7(H) mm, with surface treament of Antiglare, net weight of 3.30Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, VVX27T176H00 can provides 350 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 11/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (Adobe). This product adopted 12S3P×2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. VVX27T176H00 utilizes LVDS (4 ch, 10-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 12.0V (Typ.).
