Product Details:
|
| Brand: | OPTREX | Diagonal Size: | 5.2" |
|---|---|---|---|
| Resolution: | 240×64 47PPI | Luminance: | 400 Cd/m² |
| Viewing Angle: | 50/50/35/50 (Typ.)(CR≥2) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|

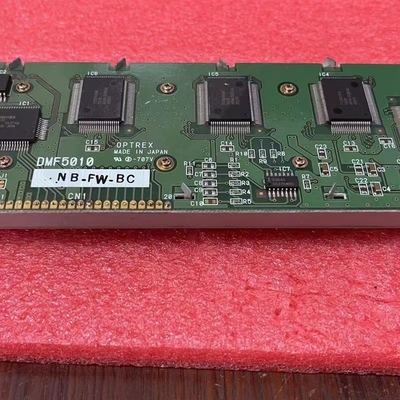

| DMF5010NB-FW-BC | STN-LCD , LCM | DMF-5010NB-FW-BC | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Min.) | 50/50/35/50 (Typ.)(CR≥2) | 110/160 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | STN, Blue mode, Transmissive | 7 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | Monochrome |
| Panel Size : | 5.2" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 240×64 | Rectangle | 0.53×0.53 [47PPI] | 0.53×0.53 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 127.2(H) × 33.92(V) | 132.0(H) × 39.0(V) | 200(H) × 66(V) | 23.0 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | >3:1 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 277g (Max.) | ||||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | Straight | 15K(Typ.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 270V (Typ.) | 5.0±1mA | |||||
| Operating Frequency | Kick-off Voltage | |||||
| 900V (Typ.) | ||||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 4 pins | 1 pcs | BLL-4PINS-HNNL | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 7.8mA (Typ.) | - | ||||
| Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 20 pins | 1 pcs | |||||
whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 127.2(W)×33.92(H) mm, outline size of 200(W)×66(H)×23(D) mm, viewing area size of 132.0(W)×39.0(H) mm, net weight of 277g (Max.). As a STN, Blue mode, Transmissive LCM product, DMF5010NB-FW-BC can provides 400 cd/m² display brightness 7:1 transimissive contrast ratio, 50/50/35/50 (Typ.)(CR≥2) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 110/160 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. DMF5010NB-FW-BC utilizes 8-bit parallel as it's signal inputting systerm, which connected by 20 pins with power supply voltage of 5.0V (Typ.).
