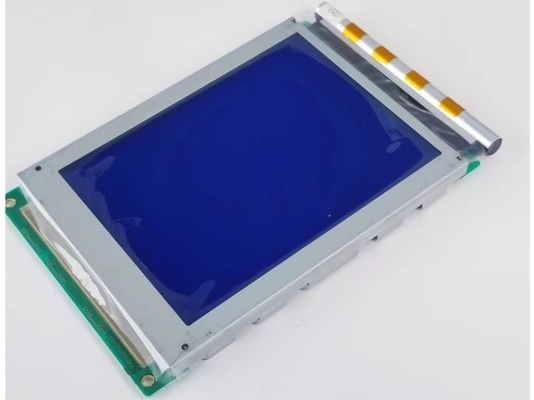

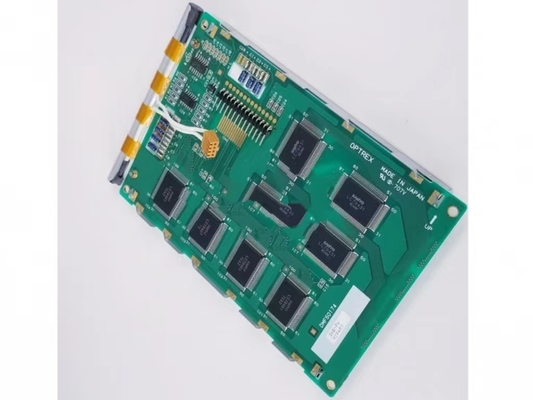

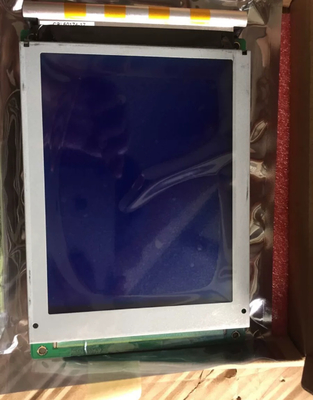

Product Details:
|
| Brand: | OPTREX | Diagonal Size: | 5.7" |
|---|---|---|---|
| Brightness: | 50 Cd/m² | Outline Size: | 174(W)×112(H) ×14(D) Mm |
| Resolution: | 320×240, QVGA 70PPI | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Information : | Brand | Model | DMF-50174ZNB-FW-BCN | |
|---|---|---|---|---|
| Type | LCM STN-LCD | Used For | ||
| Screen Size | 5.7" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 320×240, QVGA | Dot Pitch(mm) | 0.360×0.360 (H×V) |
|---|---|---|---|---|
| Pixel Format | Rectangle | Pixel Pitch(mm) | 0.360×0.360 (H×V) [70PPI] | |
| Mechanical Size : | Active Area(mm) | 115.2(H) × 86.4(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 174(H) × 112(V) | Depth(mm) | 14 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes | |||
| Other Spec : | Weight | 300g | Treatment | |
| Basic Information : | Luminance(cd/m²) | 50 (Typ.) | Contrast Ratio | 4:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | - | Display Mode | STN, Blue mode, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 100/360 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | - | Display Colors | Monochrome |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 6.0/15.0mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel Data (1ch, 4-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 14 pins | |||||
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 15K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 220V (Typ.) | Current Supply | 5.0±1.0mA | ||
| Frequency | - | Startup Voltage | 630V (Typ.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | IL-G-4S-S3C2 | 1 pcs | 4 pins | 2.5 mm | BLL-4PINS-HHNL | |
| Backlight Driver : | No | |||||
whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 174(W)×112(H)×14(D) mm, net weight of 300g. As a STN, Blue mode, Transmissive LCM product, DMF-50174ZNB-FW-BCN can provides 50 cd/m² display brightness 4:1 transimissive contrast ratio, best view direction on 6 o'clock , and response time of 100/360 (Typ.)(Tr+Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, external backlight driver is additionally needed. DMF-50174ZNB-FW-BCN utilizes Parallel Data (1ch, 4-bit) as it's signal inputting systerm, which connected by 14 pins Connector with power supply voltage of 5.0V (Typ.).
