Product Details:
|
| Brand: | OPTREX | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320×240, QVGA 70PPI | Brightness: | 50 Cd/m² |
| Input Voltage: | 5.0V (Typ.) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

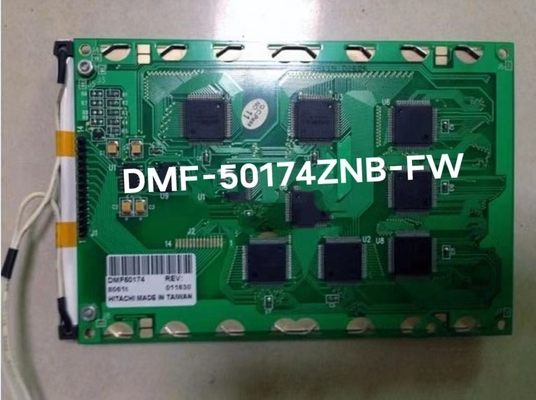

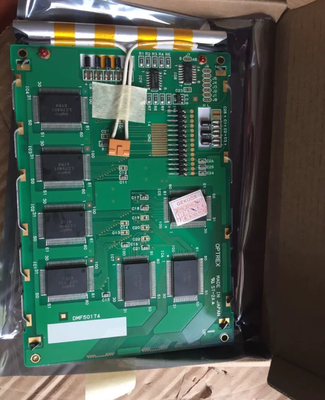

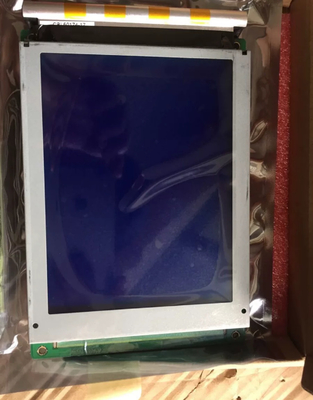

| Basic Detail : | Manufacturer | Model Name | DMF-50174ZNB-FW | |
|---|---|---|---|---|
| Panel Type | STN-LCD , LCM | Another Name | DMF50174ZNB-FW | |
| Panel Size | 5.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 50 cd/m² (Typ.) | Contrast Ratio | 4 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 100/360 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | - | Operating Mode | STN, Blue mode, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
| Pixel Features : | Number of Pixel | 320×240 [QVGA] | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.360×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.17(W)×86.37(H) mm | Overall Dim. | 174(W)×115(H) mm |
| Bezel Opening | 122.0(W)×92.0(H) mm | Overall Depth | 14.0 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Other Detail : | Mass | 300g (Max.) | Surface |
| Signal Electrical : | Input Current | 6.0/15.0mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel Data (1ch, 4-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 14 pins | |||||
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 15K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 5.0±1.0mA | Input Voltage | 220V (Typ.) | ||
| Frequency | - | Turn-on Voltage | 630V (Typ.) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 4 pins | BLL-4PINS-HNNL | ||||
| Backlight Driver : | No | |||||
whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 115.17(W)×86.37(H) mm, outline size of 174(W)×115(H)×14(D) mm, viewing area size of 122.0(W)×92.0(H) mm, net weight of 300g (Max.). As a STN, Blue mode, Transmissive LCM product, DMF-50174ZNB-FW can provides 50 cd/m² display brightness 4:1 transimissive contrast ratio, best view direction on 6 o'clock , and response time of 100/360 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. DMF-50174ZNB-FW utilizes Parallel Data (1ch, 4-bit) as it's signal inputting systerm, which connected by 14 pins Connector with power supply voltage of 5.0V (Typ.).
