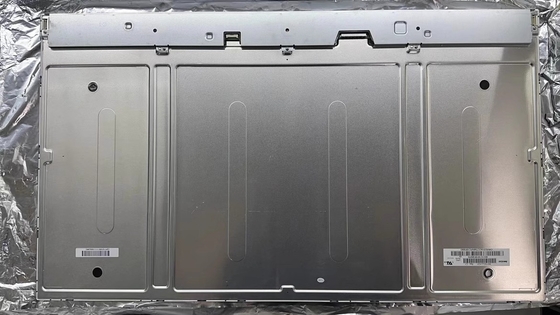

Product Details:
|
| Brand: | Innolux | Diagonal Size: | 32.0" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 139PPI | Brightness: | 0 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Detail : | Manufacturer | Model Name | M315DJJ-Q01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , CELL | Another Name | - | |
| Panel Size | 32.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 0 cd/m² | Contrast Ratio | 3000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 9.5 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.304; Wy:0.353 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6737K | White Uniformity | - | |
| 1931 Color Gamut : | NTSC Ratio | 79% | sRGB | 94% coverage |
| Adobe RGB | 80% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 59% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | No | Transmissivity | 2.6% (Typ.)(with Polarizer) |
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.060625×0.181875 mm | Pixel Pitch(W×H) | 0.181875×0.181875 mm [139PPI] | |
| Physical Size : | Active Viewing | 698.4(W)×392.85(H) mm | Overall Dim. | 712.4(W)×405.3(H) mm |
| Bezel Opening | - | Overall Depth | 1.29 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Plate Thickness | - | |
| Other Detail : | Mass | 884±44g | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Signal Electrical : | Input Current | 1.26/1.53A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 14.66/16.12W (Typ./Max.) | Signal Interface | V-by-One 8 lane | |||

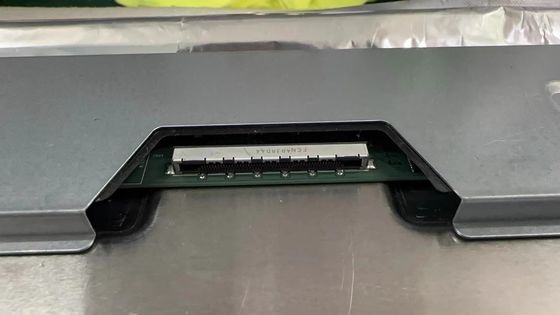

| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| FCN | WF23-402-5133 | 1 pcs | 0.5 mm | 51 pins | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC : | COF Built-in 12 source + 8 gate chips |
| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 9 | 1 | 810×555×93 | 11.70 | 0.0418 | |
| Air pallet | 234 | 26 | 1150×850×1255 | N/A | 1.2268 | |
| Sea pallet | 396 | 44 | 1150×850×NA | N/A | N/A | |
| Sea HQ pallet | 468 | 52 | 1150×850×NA | N/A | N/A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 698.4(W)×392.85(H) mm, outline size of 712.4(W)×405.3(H)×1.29(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 884±44g. As a MVA, Normally Black, Transmissive CELL product, M315DJJ-Q01 can provides 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 79% (NTSC). This product have no backlight. M315DJJ-Q01 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
