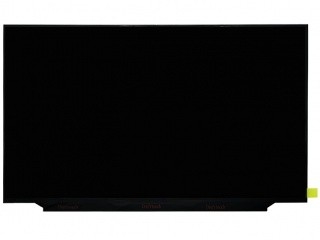

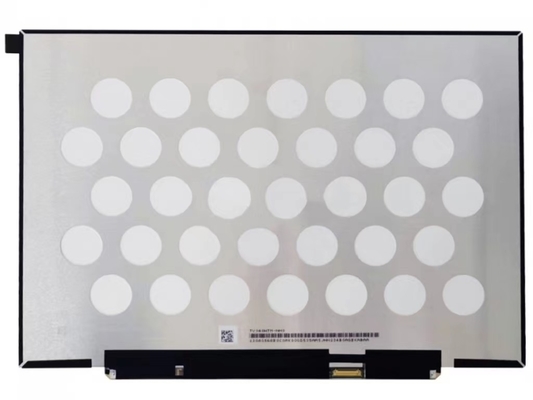

Product Details:
|
| Brand: | BOE | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 2160(RGB)×1440 185PPI | Luminance: | 330 Cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -20 ~ 65 °C Operating Temp.: -10 ~ 50 °C |
| Basic Info : | Panel Brand | Panel Model | TV140WTM-NH0 | |
|---|---|---|---|---|
| Diagonal Size | 14.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | 23040568 | |
| Reliability : | Operating Temp. | -10 ~ 50 °C | Storage Temp. | -20 ~ 65 °C |
| Pixel Features : | Pixel Format | 2160(RGB)×1440 | Dot Pitch | 0.04565×0.13695 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.13695×0.13695 mm (H×V) [185PPI] | |
| Mechanical Size : | Display Area | 295.812×197.208 mm (H×V) | Bezel Area | - |
| Outline Dim. | 301.51×208.61 mm (H×V) | Outline Depth | 2.75 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:10 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 278g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Brightness | 330 cd/m² (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | ADS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td), 35 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 11S6P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 31.35±1.1V | Current Input | 22.6mA (Typ.) | ||
| Consumption | 4.10/4.25/4.40W (Min./Typ./Max.) | |||||
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | eDP (4 Lanes), eDP1.4 | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ)(VCC) | Current Input | 268/297mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20474-030E-12 | 0.4 mm | 30 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 295.812(W)×197.208(H) mm, outline size of 301.51(W)×208.61(H)×2.75(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 278g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, TV140WTM-NH0 can provides 330 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td), 35 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 11S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TV140WTM-NH0 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ)(VCC)
