Product Details:
|
| Brand: | LM490DQ1-SSA2 | Diagonal Size: | 49" |
|---|---|---|---|
| Resolution: | 5120(RGB)×1440, DQHD 108PPI | Luminance: | 350 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Basic Information : | Brand | Model | LM490DQ1-SSA2 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 49" (Native bar) | Alias | LM490DQ1 (SS)(A2) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.0G (9.8 m/s²) |
| Pixel Features : | Resolution | 5120(RGB)×1440, DQHD | Dot Pitch(mm) | 0.078×0.234 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.234×0.234 (H×V) [108PPI] | |
| Mechanical Size : | Active Area(mm) | 1198.08(H) × 336.96(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 1209.9(H) × 360.45(V) | Depth(mm) | 18.3 (Typ.) | |
| Outline Features : | Form Style | Curved Display, R3800 | Outline Shape | 3-side borderless |
| Aspect Ratio | >3:1 (H:V) | Orientation | Landscape type | |

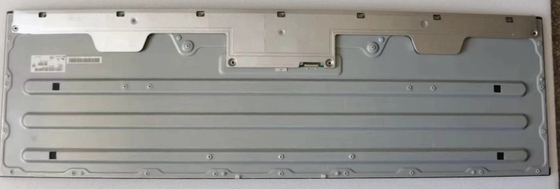

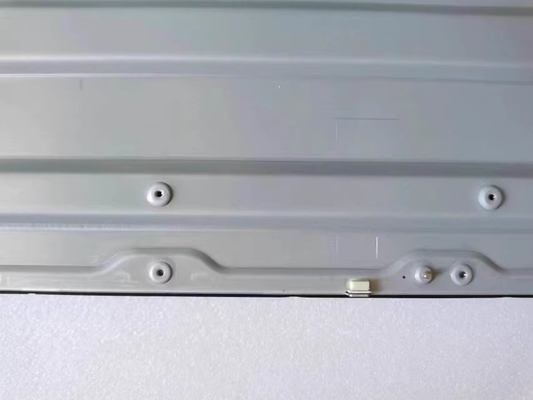

| Mounting : | Rear mounting holes | |||
| Other Spec : | Weight | 7.40/7.77Kgs (Typ./Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 77% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 10.0±0.5V | Current Supply | 0.83/1.03A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 8.3/10.3W (Typ./Max.) | |||||
| Signal Type : | eDP (8 Lanes), HBR2 (5.4G/lane) | Signal Voltage | - | |||

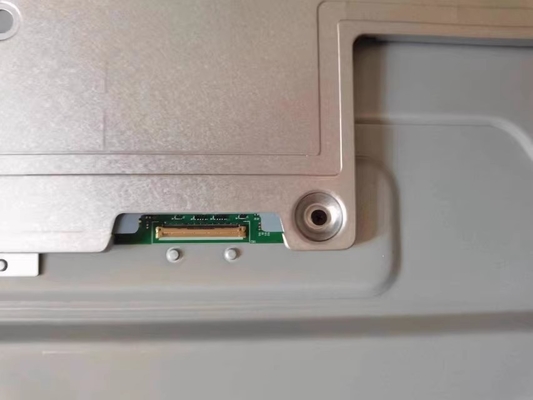

| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20525-060E-01 | 1 pcs | 60 pins | 0.4 mm | ||
| Backlight Features: | Shape | 4 strings × 2CN | Type | WLED | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 4 strings × 2CN | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 47±3.3V | Current Supply | 115/120mA (Typ./Max.) | ||
| Consumption | 43.2/46.1W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | 10035WS-H06D | 2 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1198.08(W)×336.96(H) mm, outline size of 1209.9(W)×360.45(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 7.40/7.77Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM490DQ1-SSA2 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (sRGB). This product adopted 4 strings × 2CN WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM490DQ1-SSA2 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0±0.5V.
